Steering Wheel Controls: Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

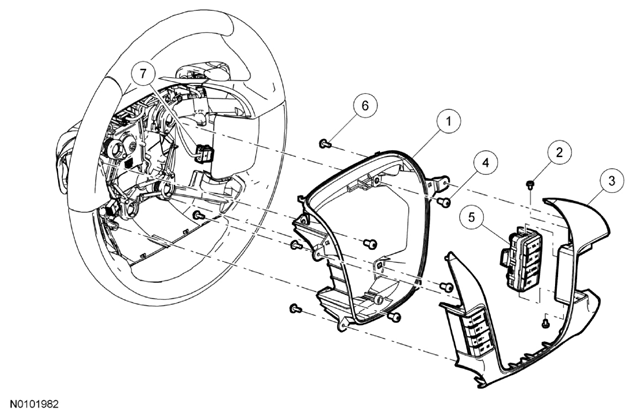

| Item | Part Number | Description |
|---|---|---|
| 1 | 3F910-A | Steering wheel bezel box |
| 2 | M3x6 | Steering wheel controls screws (2 required) |
| 3 | 3F910-B | Steering wheel controls bezel |
| 4 | W790212-S | Steering wheel bezel box screws (4 required) |
| 5 | 9C888 | Steering wheel controls |
| 6 | W790212-S | Steering wheel controls bezel screws (4 required) |
| 7 | - | Steering wheel controls electrical connector (part of steering wheel harness) |
