Video Camera: Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

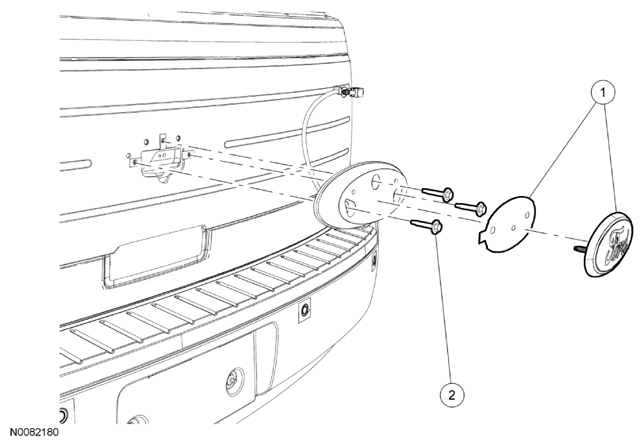

| Item |
Part Number |
Description |
| 1 |
7842528 |
Ford oval emblem (adhesive sticker part of the Ford oval) |
| 2 |
W505426 |
Ford oval emblem bezel bolts (3 required) |
Courtesy of FORD MOTOR CO.

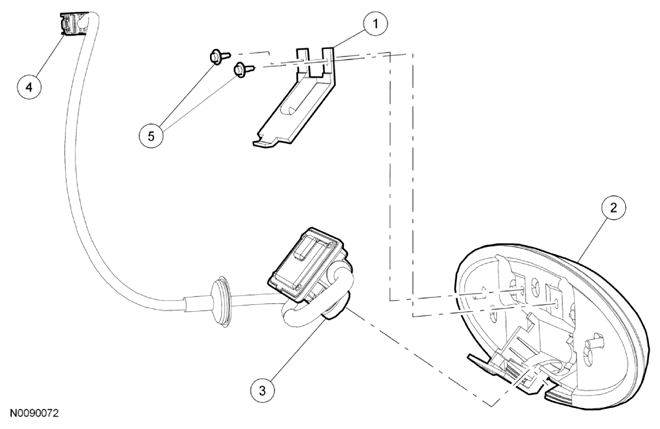

| Item |
Part Number |
Description |
| 1 |
- |
Video camera cover |
| 2 |
- |
Ford oval emblem bezel |
| 3 |
19G490 |
Video camera |
| 4 |
- |
Video camera electrical connector |
| 5 |
- |
Video camera cover screws (2 required) |
