In-Vehicle Repair: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the mating surface is clean before installing the new seal.

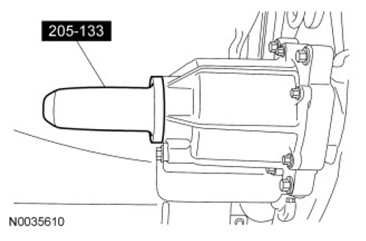

Using the Pinion Seal Replacer, install the seal.

Fig 1: Installing Seal Using Pinion Seal Replacer
Courtesy of FORD MOTOR CO.
NOTE: Lubricate the pinion flange with grease.

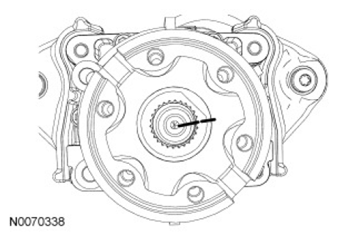

Line up the index marks and position the pinion flange.

Fig 2: Locating Index-Mark Of Pinion To Yoke
Courtesy of FORD MOTOR CO.

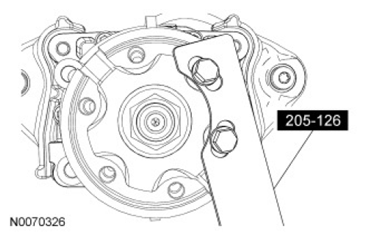

Using the Drive Pinion Flange Holding Fixture, install the new pinion nut.
- Tighten to 244 Nm (180 lb-ft).
Fig 3: Holding Pinion Flange Using Drive Pinion Flange Holding Fixture
Courtesy of FORD MOTOR CO.
Install the driveshaft. For additional information, refer to DRIVESHAFT .
