Blower Motor Speed Control: Notes

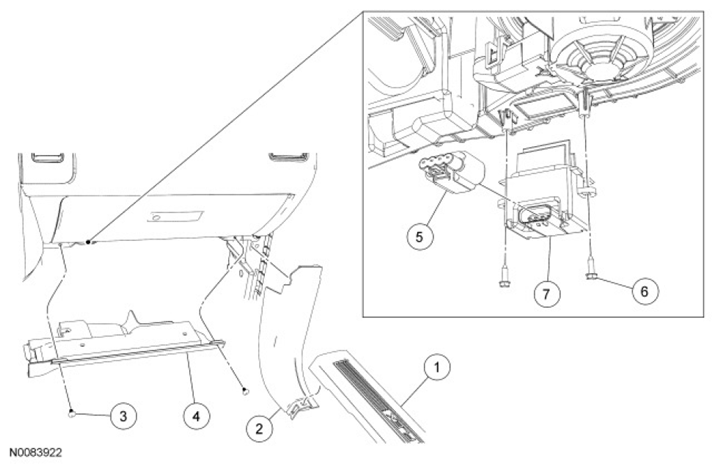

BLOWER MOTOR SPEED CONTROL PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7413208 | RH scuff plate trim panel |
| 2 | 7402344 | RH lower A-pillar trim panel |
| 3 | W705589 | RH lower instrument panel insulator pin-type retainer (2 required) |
| 4 | 54046A24 | RH lower instrument panel insulator |
| 5 | - | Blower motor speed control electrical connector (part of 14401) |
| 6 | W701696 | Blower motor speed control screw (2 required) |
| 7 | 19E624 | Blower motor speed control |
