Anti-Lock Brake System Module Connector - C135\

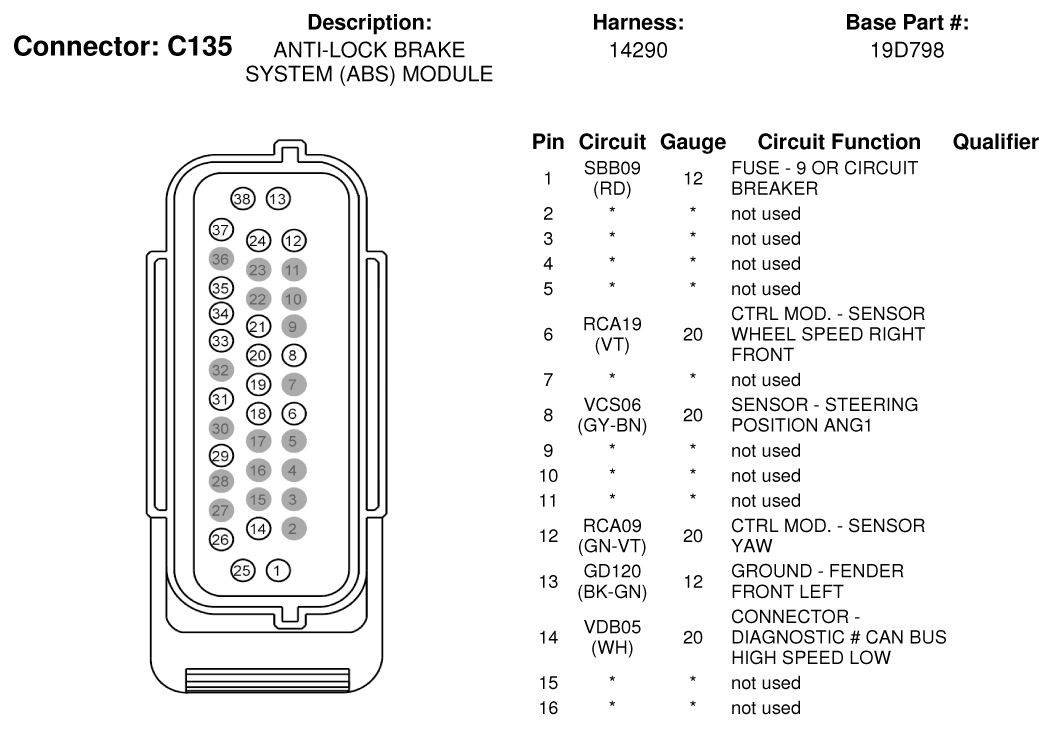

Fig 1: Anti-Lock Brake System Module Connector End View (C135) (1 Of 2)
G07334773Courtesy of FORD MOTOR CO.

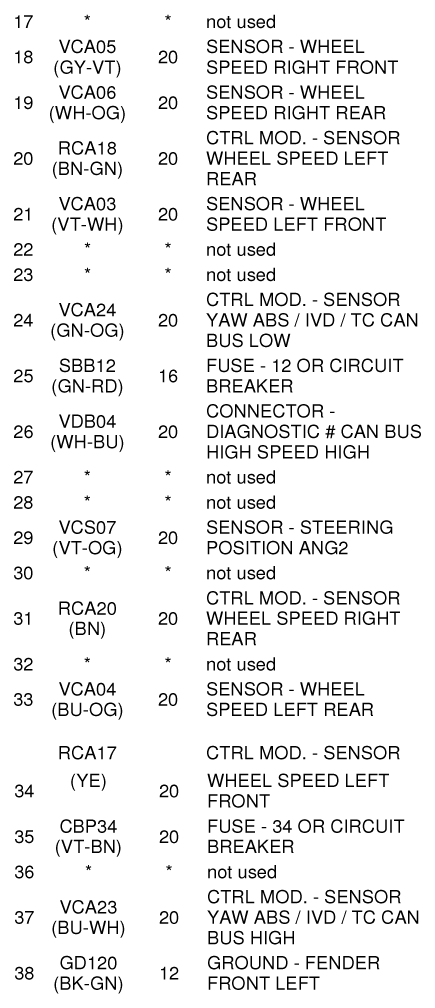

Fig 2: Anti-Lock Brake System Module Connector End View (C135) (2 Of 2)
G07334774Courtesy of FORD MOTOR CO.
