Global Positioning System Module Connector - C2140

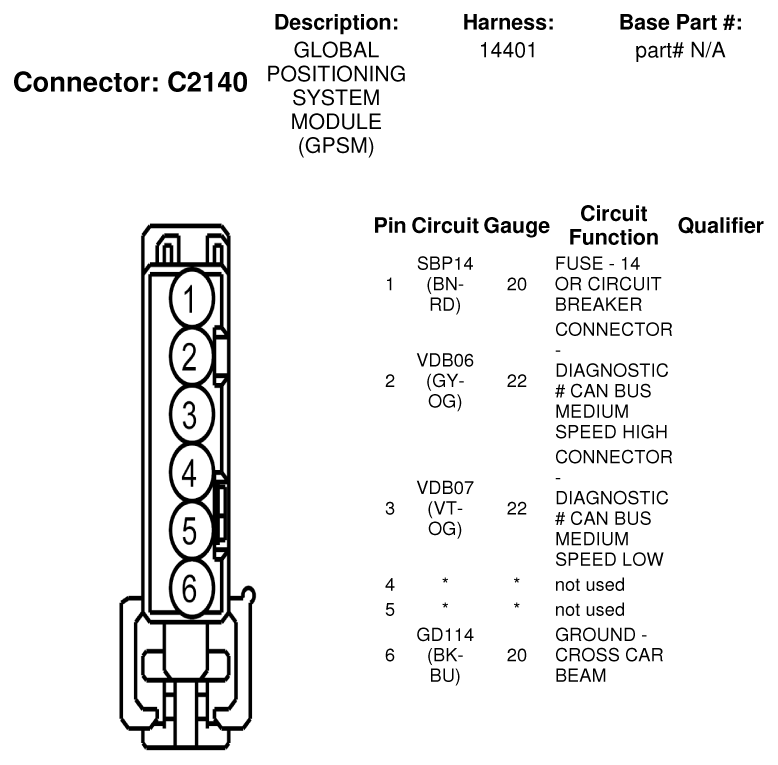

Fig 1: Global Positioning System Module Connector End View (C2140)
G07335051Courtesy of FORD MOTOR CO.
