Steering Column Shroud

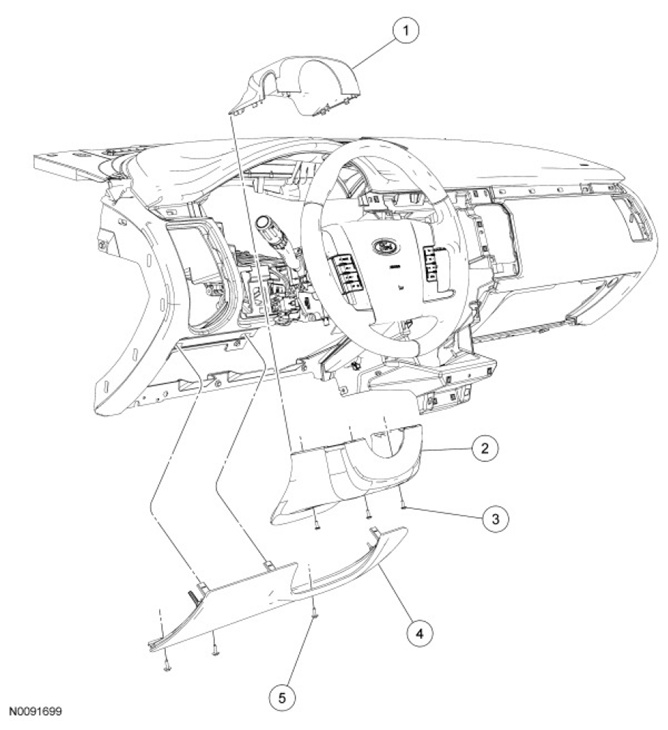

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | 3533 | Lower steering column shroud |
| 3 | N706731 | Steering column shroud screw (3 required) |
| 4 | 044F08 | Steering column opening trim panel |
| 5 | N808453 | Steering column opening trim panel screw (3 required) |
- Remove the 3 screws and the steering column opening trim panel.
- Remove the upper and lower steering column shrouds.
- Remove the 3 screws.
- Unclip the lower steering column shroud from the upper and remove the shrouds.
