Main Control Valve Body: Notes

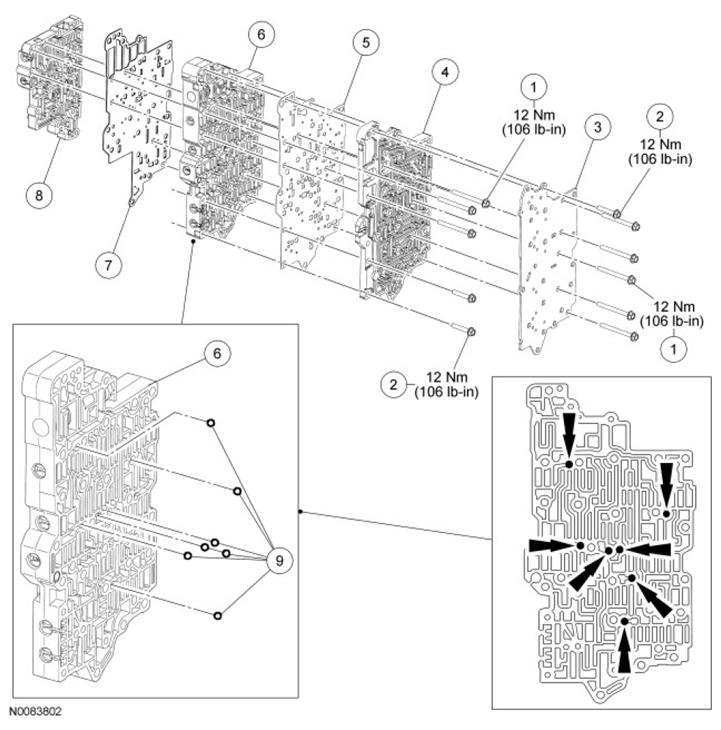

Fig 1: Exploded View Of Main Control Valve Body Components With Torque Specifications
G07467896Courtesy of FORD MOTOR CO.
