Main Control Valve Body: Notes

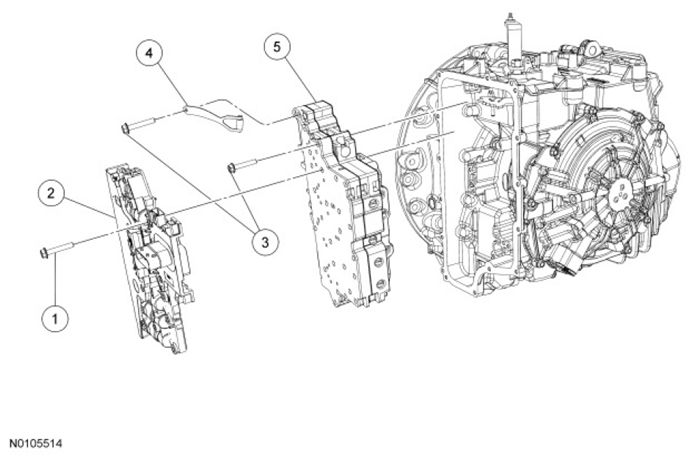

Fig 1: Identifying Main Control Valve Body Components

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	7J291	Bolt - solenoid body
2	7Z369	Solenoid body
3	7J291	Bolts - valve body
4	7E332	Manual valve detent spring
5	7A100	Valve body
