Passenger Side Window Control Switch Connector - C604
Passenger Side Window Control Switch Connector - C604

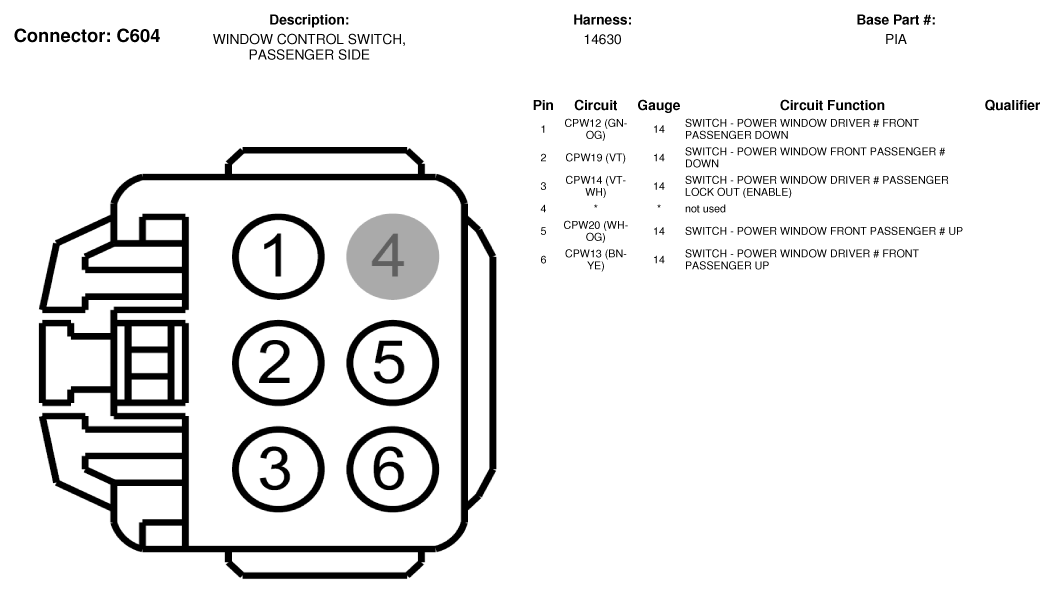

Fig 1: Passenger Side Window Control Switch Connector End View (C604)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
