Removal and Installation

Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM article.
Disconnect the electronic throttle control electrical connector.
Remove the 4 bolts and the Throttle Body (TB).
- Inspect the TB gasket and install new as necessary.
- To install, tighten to 10 Nm (89 lb-in) in the sequence shown in the illustration.

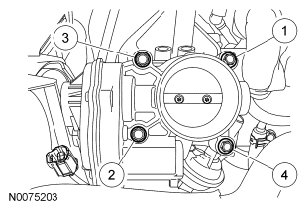

Fig 1: Throttle Body (TB) Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
