Data Link Connector - C251
Data Link Connector - C251

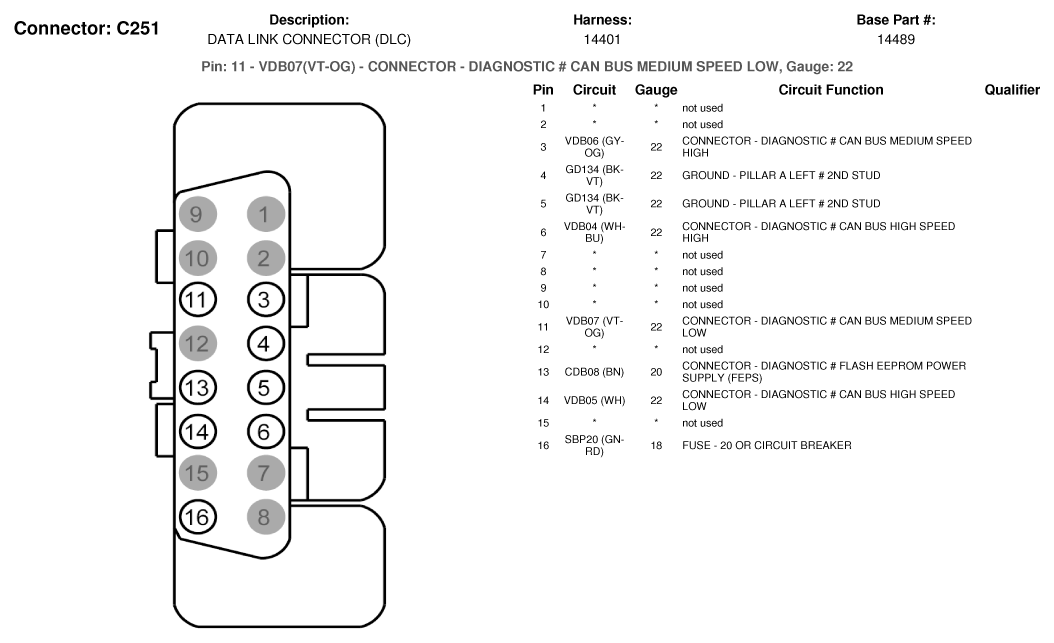

Fig 1: Data Link Connector End View (C251)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
