Power Steering Fluid Reservoir: Notes

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

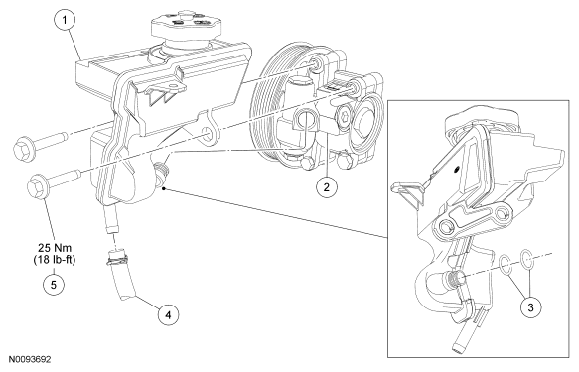

Fig 1: Exploded View Of Power Steering Fluid Reservoir

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3R700	Power steering fluid reservoir
2	3A674	Power steering pump
3	3F886	Power steering fluid reservoir-to-steering pump O-ring seals (2 required for early build, 1 required for late build)
4	3A713	Return hose
5	W712054	Power steering fluid reservoir bolt (2 required)
