Anti-Lock Brake System (ABS) Module: Notes

SPECIAL TOOL(S)

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

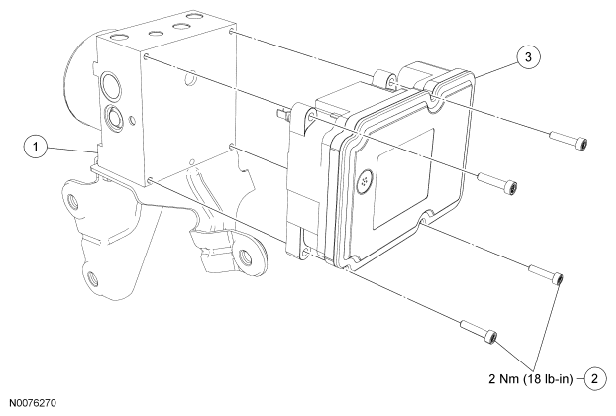

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2C286	Hydraulic Control Unit (HCU)
2	2M101	ABS module screws (4 required)
3	2C013	ABS module
