Component Location Charts

Fig 1: Identifying C100 A/C Compressor Clutch Field Coil Location - Engine Front

Courtesy of FORD MOTOR CO.

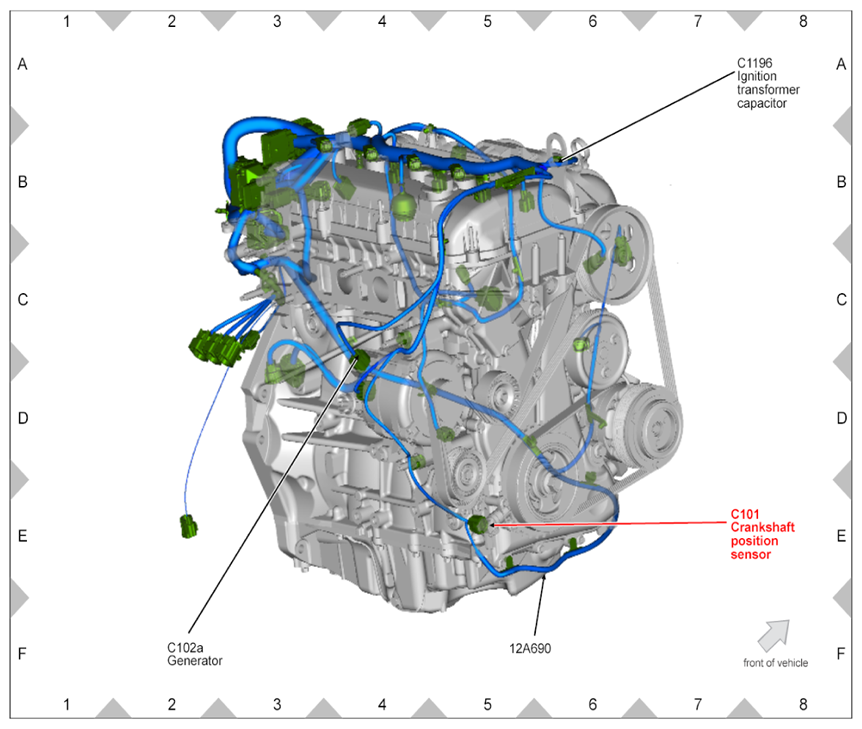

Fig 2: Identifying C101 Crankshaft Position Sensor Location - RH Side Bottom Of Engine

Courtesy of FORD MOTOR CO.

Fig 3: Identifying C102A Generator Location - Rear Center Of Engine

Courtesy of FORD MOTOR CO.

Fig 4: Identifying C102B Generator Location - Engine Compartment RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 5: Identifying C103 Oil Pressure Switch Location - Front Bottom Of Engine

Courtesy of FORD MOTOR CO.

Fig 6: Identifying C109 Knock Sensor Location - Engine RH Side

Courtesy of FORD MOTOR CO.

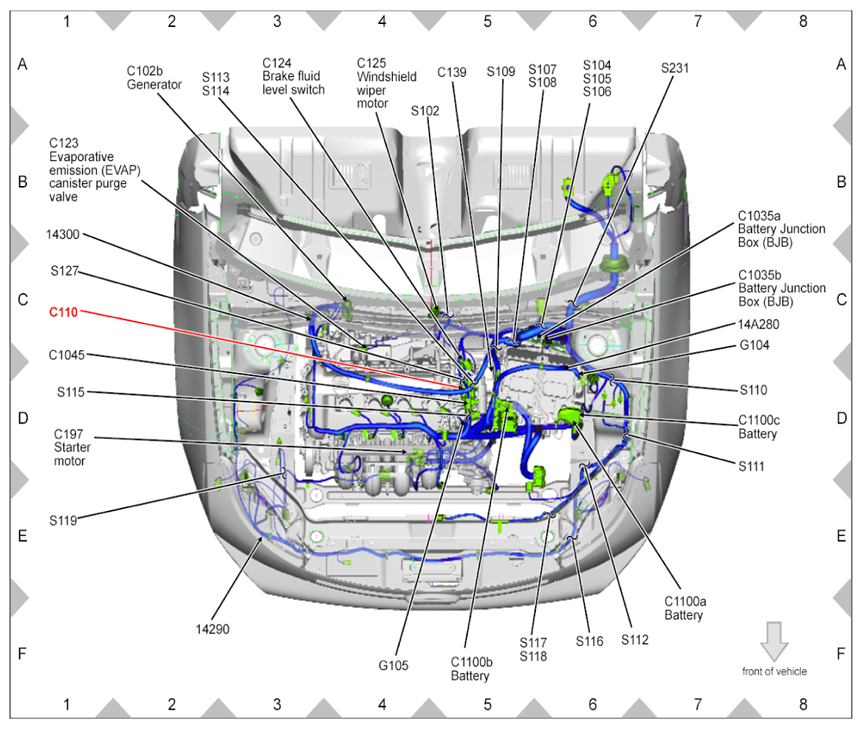

Fig 7: Identifying C110 Connector Location - Engine Compartment, Center

Courtesy of FORD MOTOR CO.

Fig 8: Identifying C110 Connector Location - (Automatic Transmission) Near Top Of Transmission

Courtesy of FORD MOTOR CO.

Fig 9: Identifying C110 Connector Location - (Manual Transmission) Near Top Of Transmission

Courtesy of FORD MOTOR CO.

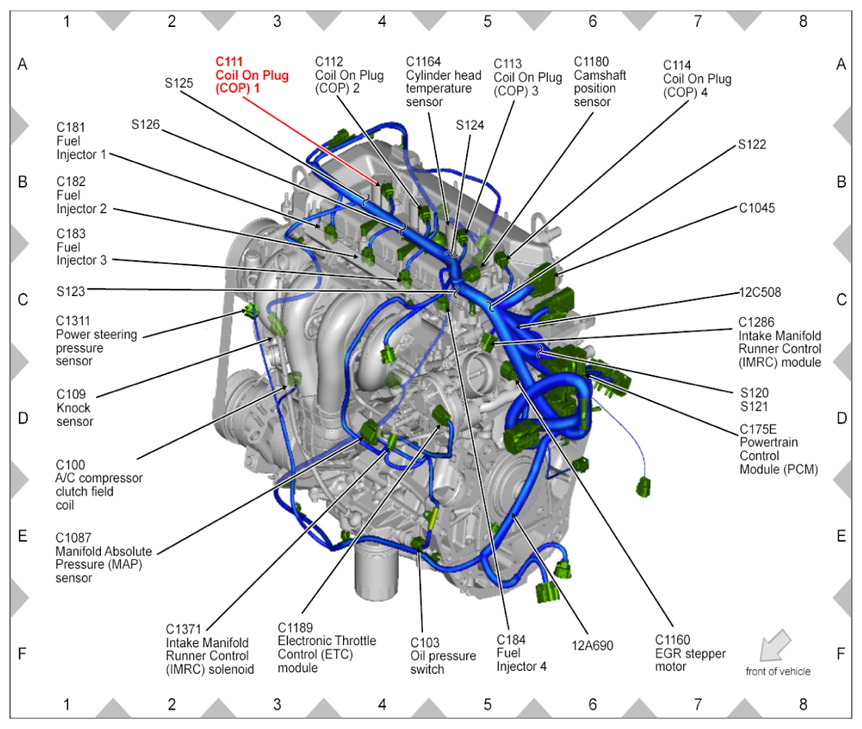

Fig 10: Identifying C111 Coil On Plug (COP) 1 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 11: Identifying C112 Coil On Plug (COP) 2 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

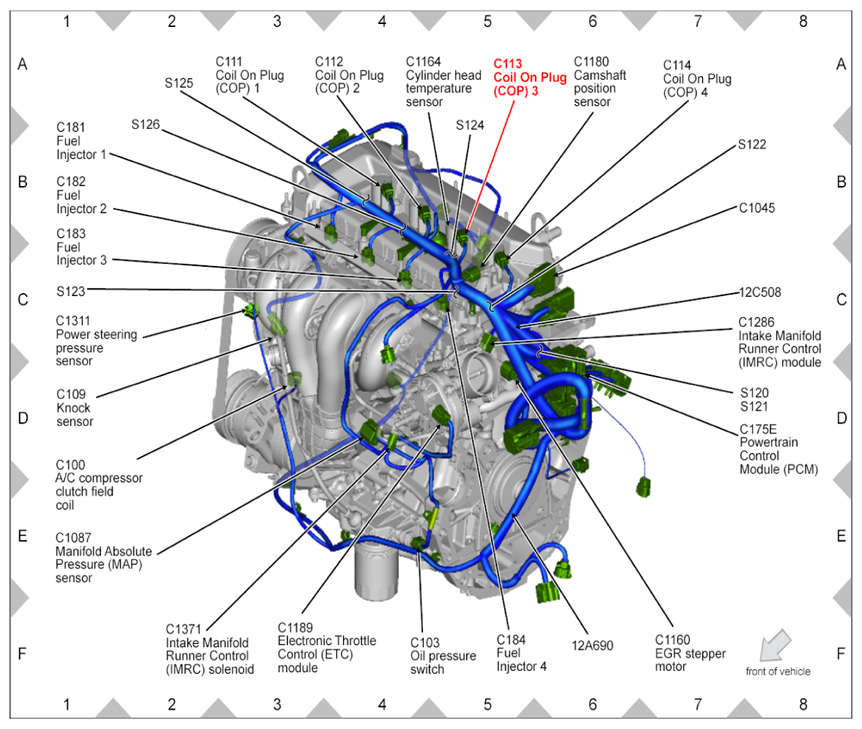

Fig 12: Identifying C113 Coil On Plug (COP) 3 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 13: Identifying C114 Coil On Plug (COP) 4 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

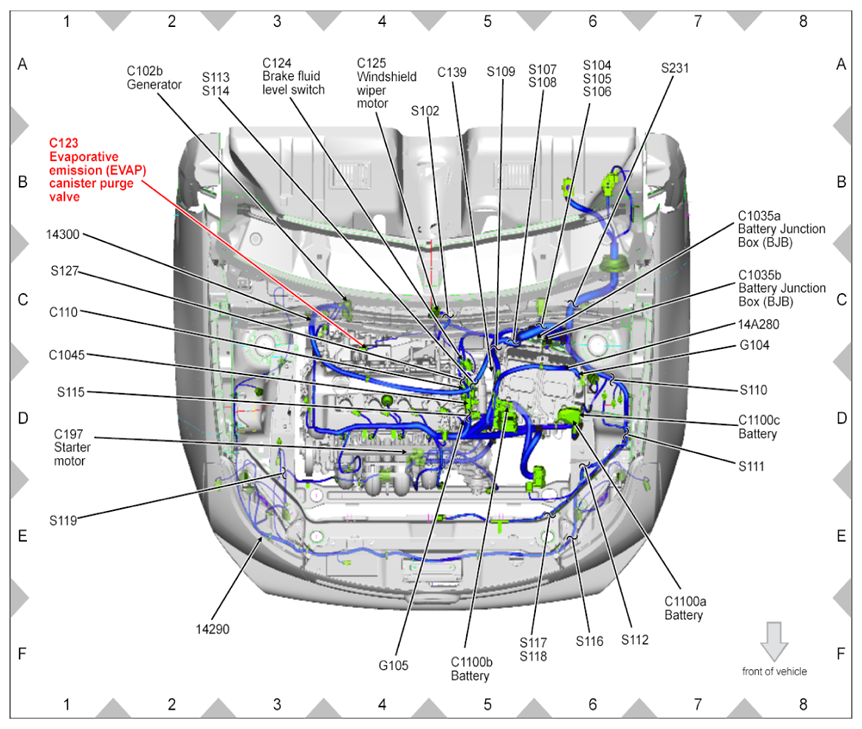

Fig 14: Identifying C123 Evaporative Emission (EVAP) Canister Purge Valve Location - Engine Compartment, Rear

Courtesy of FORD MOTOR CO.

Fig 15: Identifying C124 Brake Fluid Level Switch Location - Engine Compartment, Rear

Courtesy of FORD MOTOR CO.

Fig 16: Identifying C125 Windshield Wiper Motor Location - Engine Compartment, Rear Center

Courtesy of FORD MOTOR CO.

Fig 17: Identifying C126 Connector Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 18: Identifying C127 Anti-Theft Hood Switch Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 19: Identifying C128 Mass Air Flow/Intake Air Temperature (MAFIAT) Sensor Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 20: Identifying C131 Horn Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

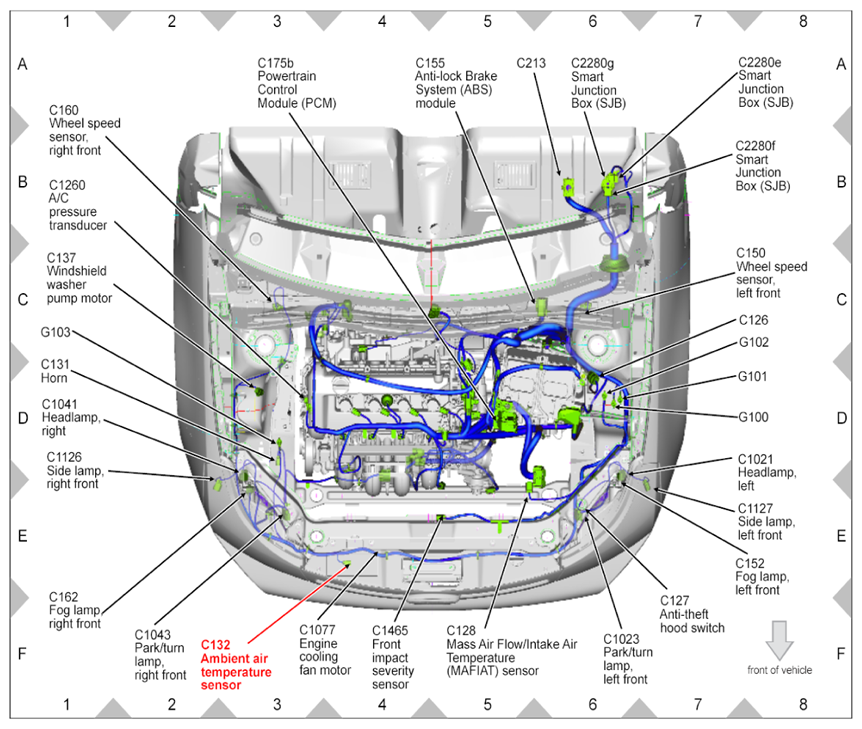

Fig 21: Identifying C132 Ambient Temperature Sensor Location - Engine Compartment, Front

Courtesy of FORD MOTOR CO.

Fig 22: Identifying C137 Windshield Washer Pump Motor Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 23: Identifying C139 Connector Location - Engine Compartment, Center

Courtesy of FORD MOTOR CO.

Fig 24: Identifying C142 Heated Oxygen Sensor (HO2S)#12 Location - (Automatic Transmission) Near Rear Of Transmission

Courtesy of FORD MOTOR CO.

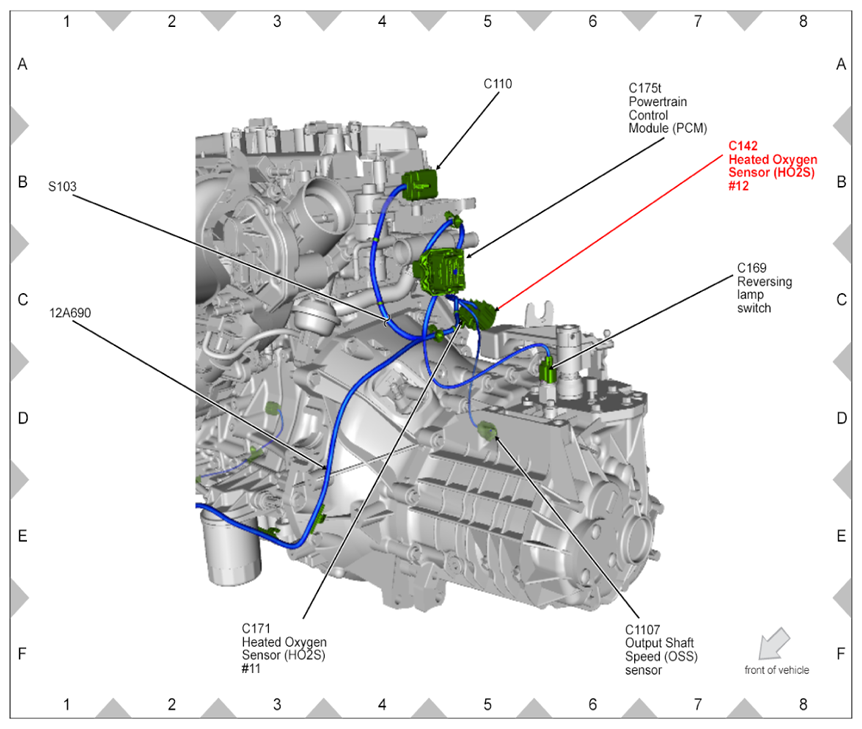

Fig 25: Identifying C142 Heated Oxygen Sensor (HO2S)#12 Location - (Manual Transmission) Near Rear Of Transmission

Courtesy of FORD MOTOR CO.

Fig 26: Identifying C143 Turbine Shaft Speed (TSS) Sensor Location - (Automatic Transmission) On Transmission, Top

Courtesy of FORD MOTOR CO.

Fig 27: Identifying C150 Wheel Speed Sensor, Left Front Location - Engine Compartment LH Side, Rear

Courtesy of FORD MOTOR CO.

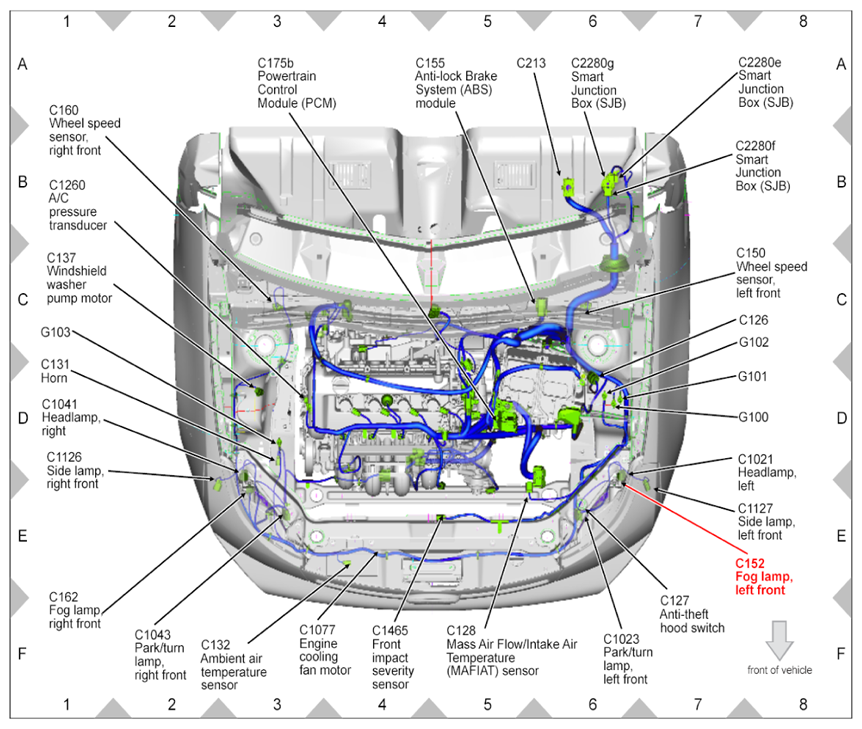

Fig 28: Identifying C152 Fog Lamp Left Front Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

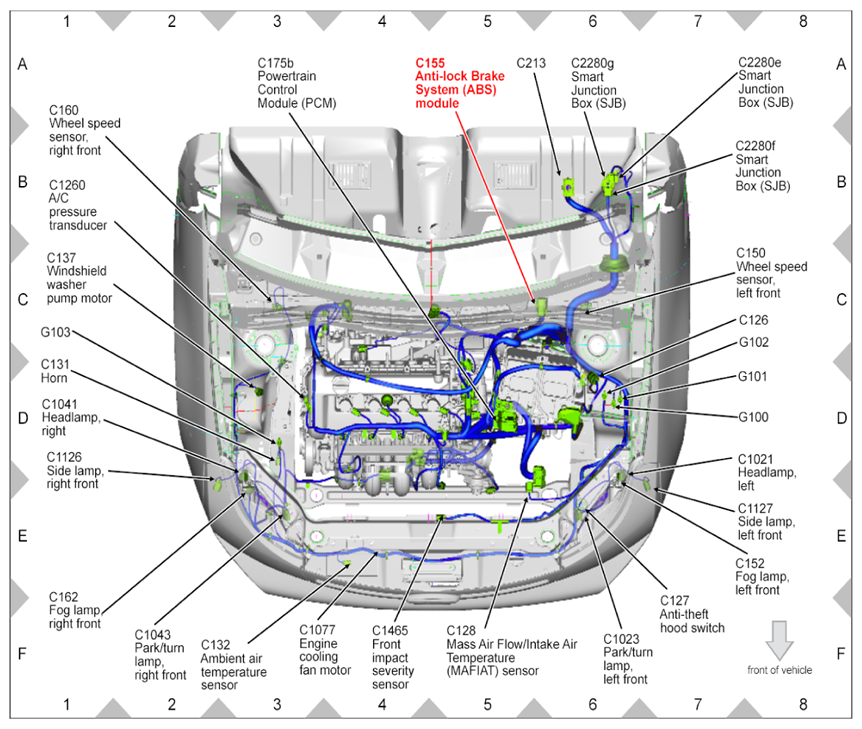

Fig 29: Identifying C155 Anti-lock Brake System (ABS) Module Location - Engine Compartment LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 30: Identifying C160 Wheel Speed Sensor, Right Front Location - Engine Compartment RH Side, Rear

Courtesy of FORD MOTOR CO.

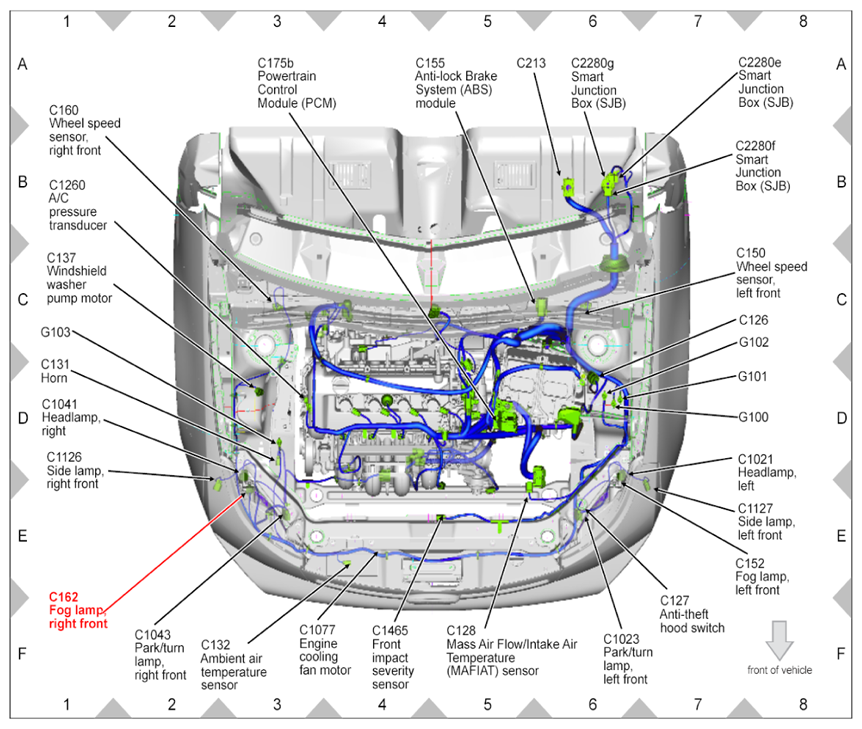

Fig 31: Identifying C162 Fog Lamp Right Front Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

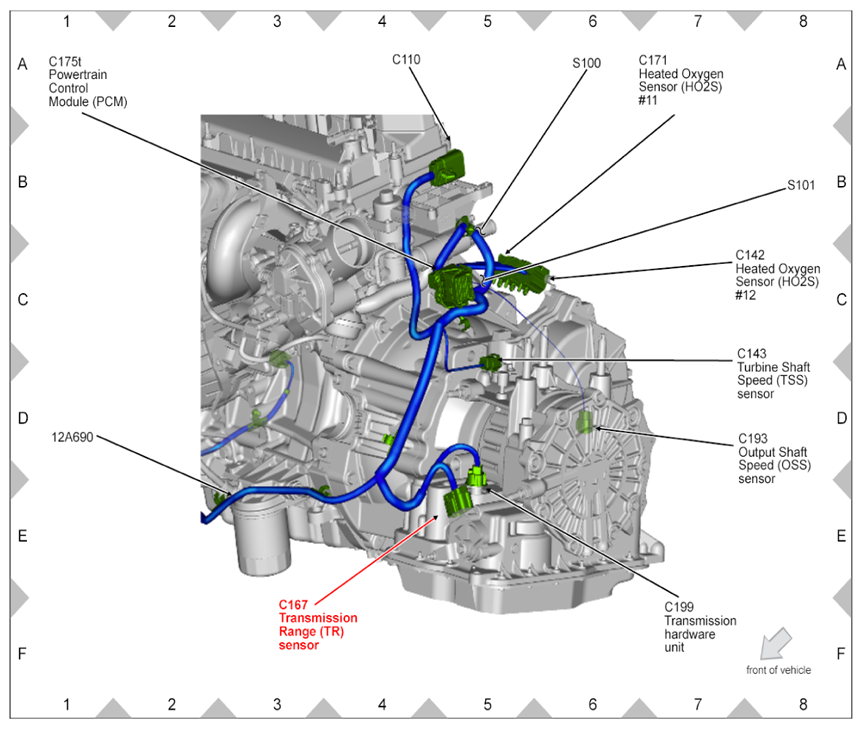

Fig 32: Identifying C167 Transmission Range (TR) Sensor Location - (Automatic Transmission) On Transmission, Front

Courtesy of FORD MOTOR CO.

Fig 33: Identifying C169 Reversing Lamps Switch Location - (Manual Transmission) On Transmission, Top

Courtesy of FORD MOTOR CO.

Fig 34: Identifying C171 Heated Oxygen Sensor (HO2S) #11 Location - (Automatic Transmission) Near Rear Of Transmission

Courtesy of FORD MOTOR CO.

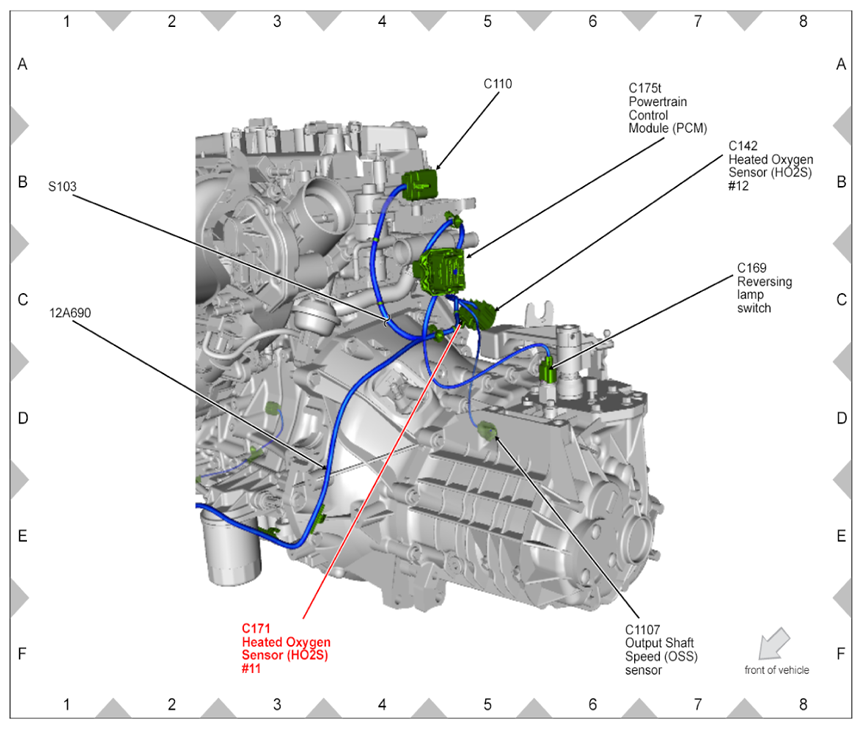

Fig 35: Identifying C171 Heated Oxygen Sensor (HO2S) #11 Location - (Manual Transmission) Near Rear Of Transmission

Courtesy of FORD MOTOR CO.

Fig 36: Identifying C175E Powertrain Control Module (PCM) Location - Engine Compartment - Center

Courtesy of FORD MOTOR CO.

Fig 37: Identifying C175B Powertrain Control Module (PCM) Location - Engine Compartment, Center

Courtesy of FORD MOTOR CO.

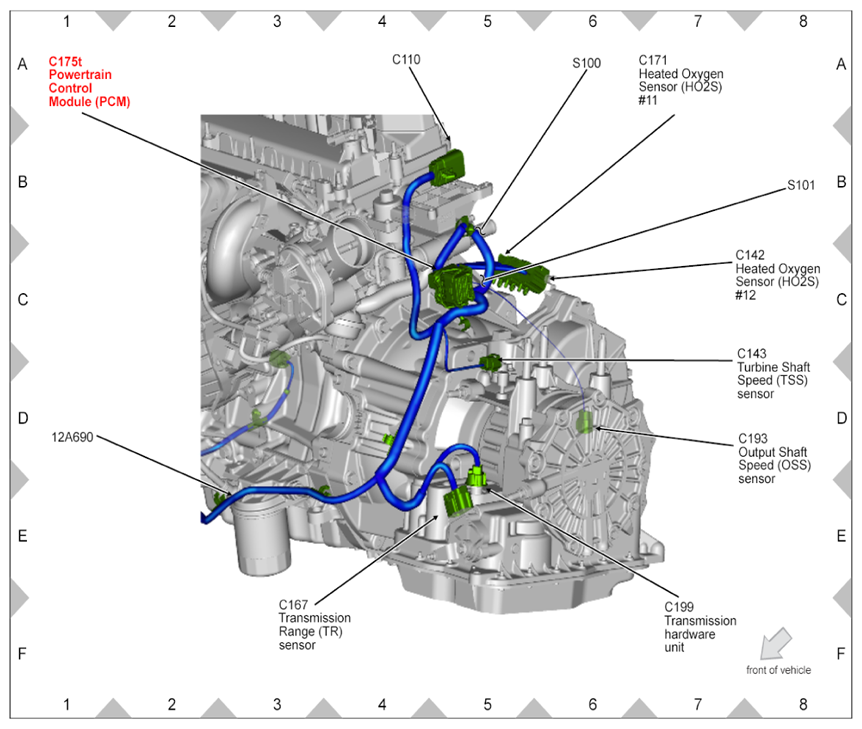

Fig 38: Identifying C175T Powertrain Control Module (PCM) Location - (Automatic Transmission) Engine Compartment, Center

Courtesy of FORD MOTOR CO.

Fig 39: Identifying C175T Powertrain Control Module (PCM) Location - (Manual Transmission) Engine Compartment, Center

Courtesy of FORD MOTOR CO.

Fig 40: Identifying C181 Fuel Injector 1 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 41: Identifying C182 Fuel Injector 2 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 42: Identifying C183 Fuel Injector 3 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 43: Identifying C184 Fuel Injector 4 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 44: Identifying C193 Output Shaft Speed (OSS) Sensor Location - (Automatic Transmission) On Transmission, Rear

Courtesy of FORD MOTOR CO.

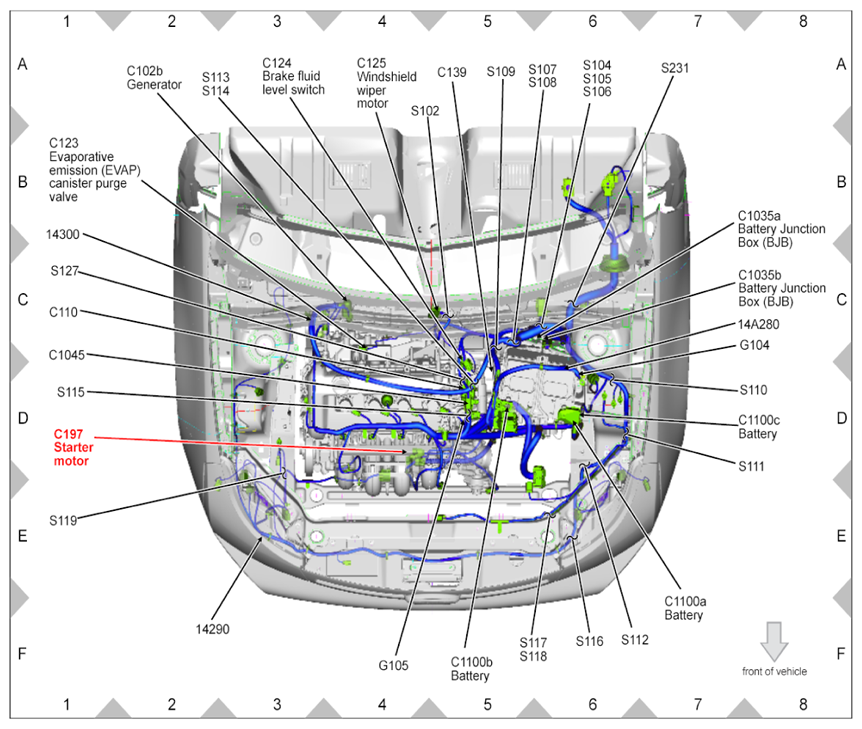

Fig 45: Identifying C197 Starter Motor Location - Engine Compartment, Front Center

Courtesy of FORD MOTOR CO.

Fig 46: Identifying C199 Transmission Hardware Unit Location - (Automatic Transmission) On Transmission, Front

Courtesy of FORD MOTOR CO.

Fig 47: Identifying C202 Multifunction Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 48: Identifying C205 Main Light Switch Location - Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 49: Identifying C210 Connector Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 50: Identifying C211A Connector Location - Under Instrument Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 51: Identifying C211B Connector Location - Under Instrument Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 52: Identifying C211C Connector Location - Under Instrument Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 53: Identifying C213 Connector Location - Behind Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 54: Identifying C214A Connector Location - Under Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 55: Identifying C214B Connector Location - Under Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 56: Identifying C214C Connector Location - Under Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

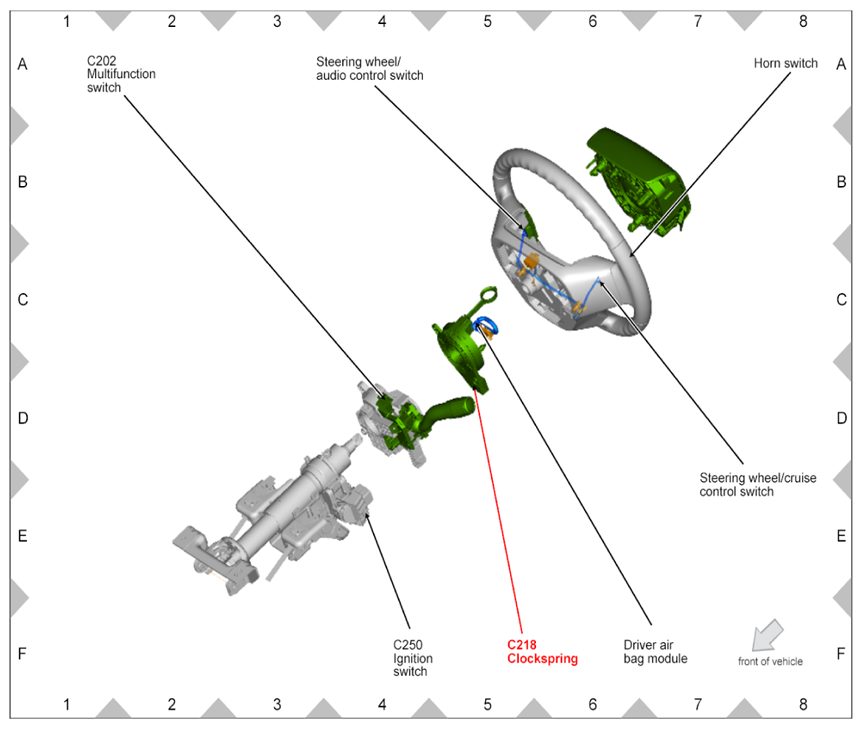

Fig 57: Identifying C218 Clockspring Location - On Steering Column, Behind Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 58: Identifying C220 Instrument Cluster (IC) Location - Instrument Panel, LH Side Top

Courtesy of FORD MOTOR CO.

Fig 59: Identifying C226 Steering Wheel Rotation Sensor Location - Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 60: Identifying C240A Audio Control Module (ACM) Location - Instrument Panel, Center

Courtesy of FORD MOTOR CO.

Fig 61: Identifying C240B Audio Control Module (ACM) Location - Instrument Panel, Center

Courtesy of FORD MOTOR CO.

Fig 62: Identifying C240C Audio Control Module (ACM) Location - Instrument Panel, Center

Courtesy of FORD MOTOR CO.

Fig 63: Identifying C250 Ignition Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 64: Identifying C251 Data Link Connector (DLC) Location - Instrument Panel, LH Side Bottom

Courtesy of FORD MOTOR CO.

Fig 65: Identifying C252 Passive Anti-Theft Transceiver Module Location - Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 66: Identifying C256 Passenger Air Bag Module Location - Instrument Panel, RH Side

Courtesy of FORD MOTOR CO.

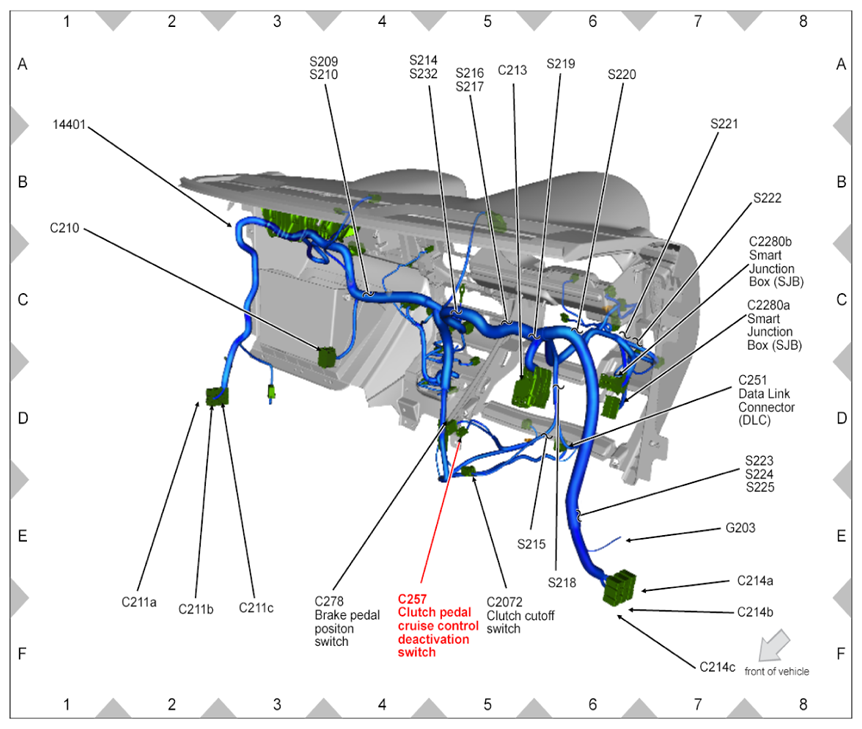

Fig 67: Identifying C257 Clutch Pedal Cruise Control Deactivation Switch Location - Behind Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

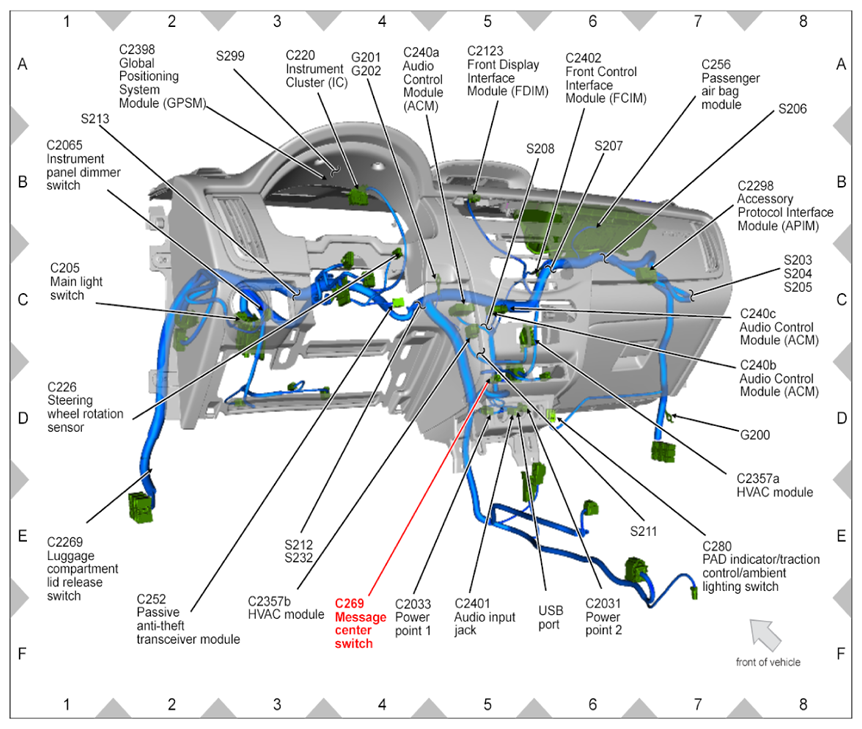

Fig 68: Identifying C269 Message Center Switch Location - Instrument Panel, Center

Courtesy of FORD MOTOR CO.

Fig 69: Identifying C278 Brake Pedal Position Switch Location - Behind Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 70: Identifying C280 Pad Indicator/Traction Control/Ambient Lighting Switch Location - Instrument Panel, Center

Courtesy of FORD MOTOR CO.

Fig 71: Identifying C289 Temperature Blend Door Actuator Location - Behind Center Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 72: Identifying C293 Blower Motor Resistor Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

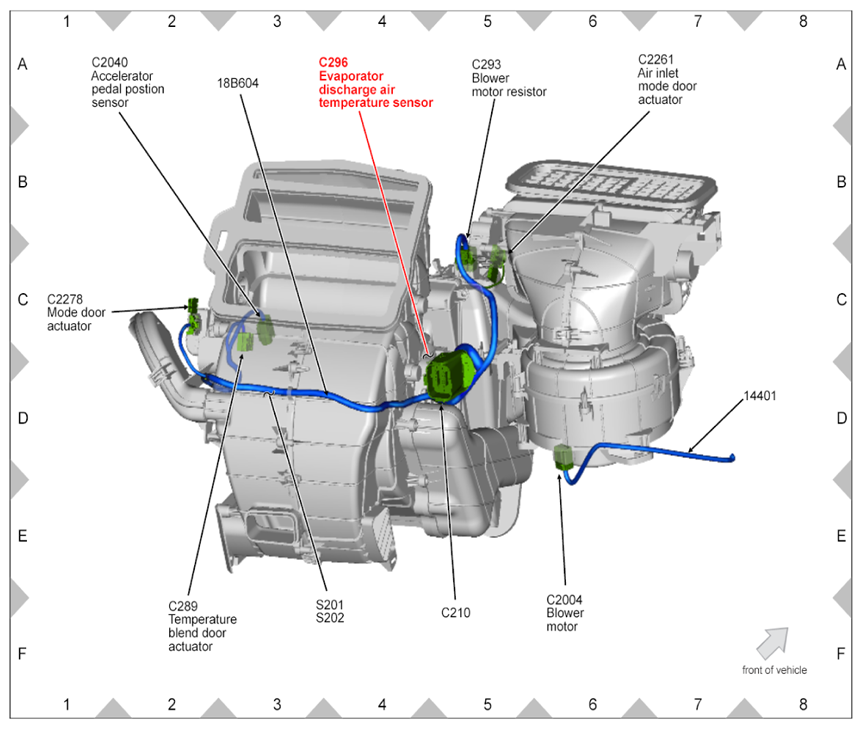

Fig 73: Identifying C296 Evaporator Discharge Air Temperature Sensor Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

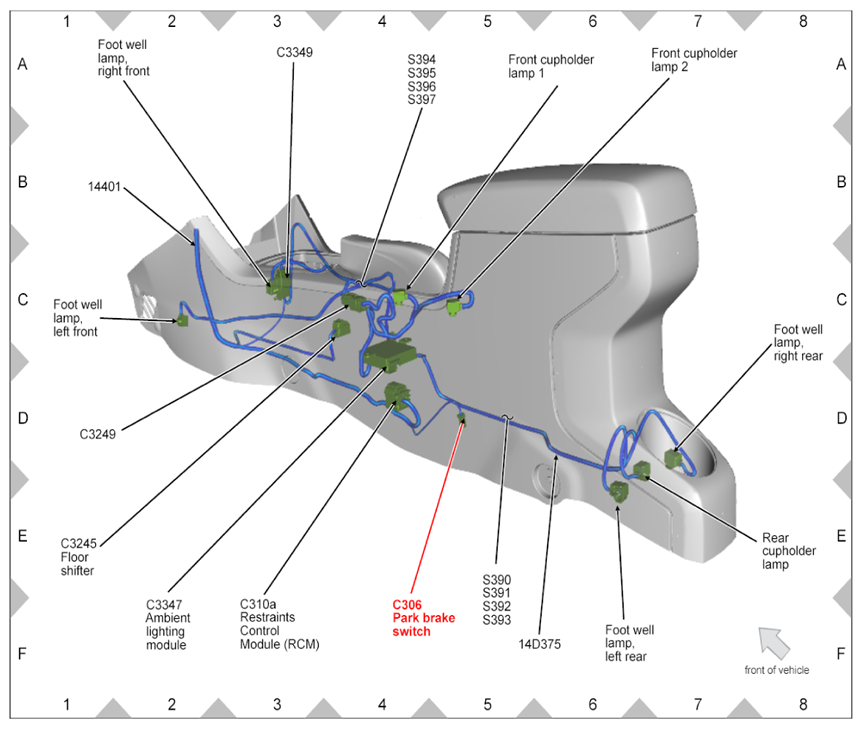

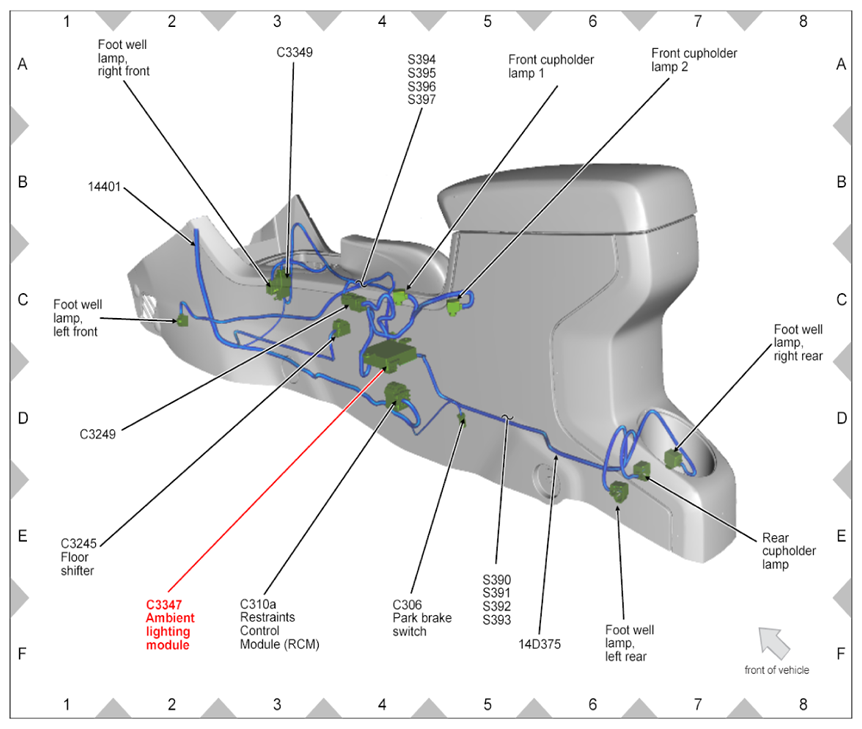

Fig 74: Identifying C306 Park Brake Switch Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

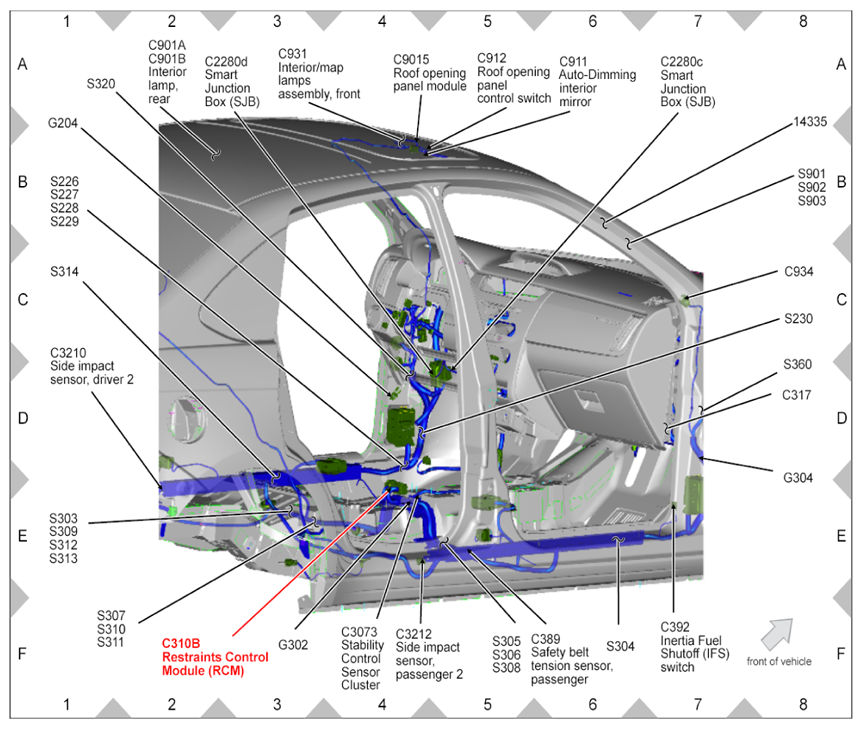

Fig 75: Identifying C310B Restraints Control Module (RCM) Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 76: Identifying C310A Restraints Control Module (RCM) Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

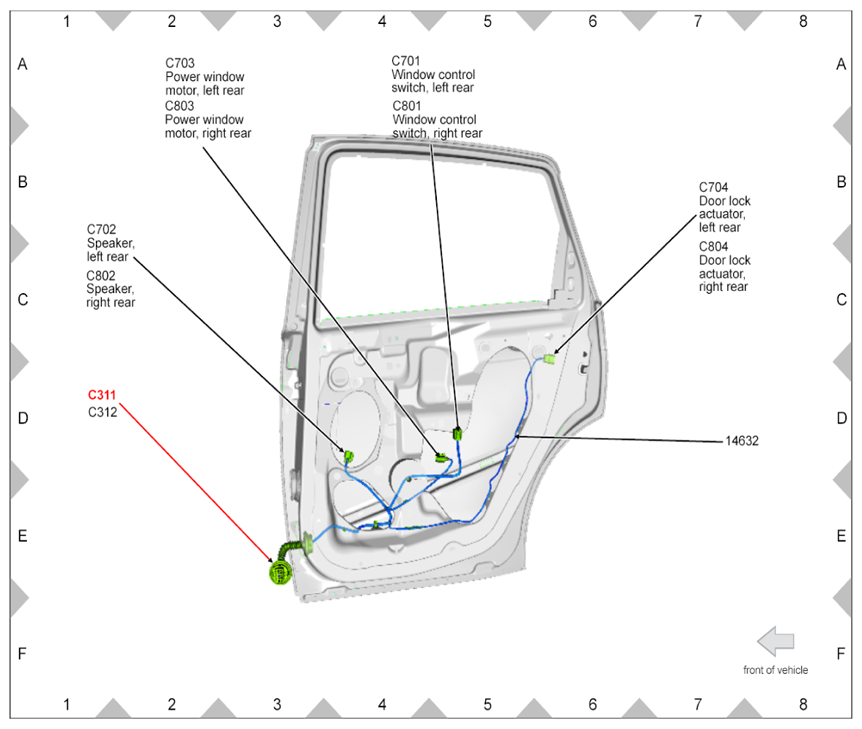

Fig 77: Identifying C311 Connector Location - Rear Door, RH Side Bottom Front

Courtesy of FORD MOTOR CO.

Fig 78: Identifying C312 Connector Location - Rear Door, LH Side Bottom Front

Courtesy of FORD MOTOR CO.

Fig 79: Identifying C317 Connector Location - Behind Passenger Kick Panel

Courtesy of FORD MOTOR CO.

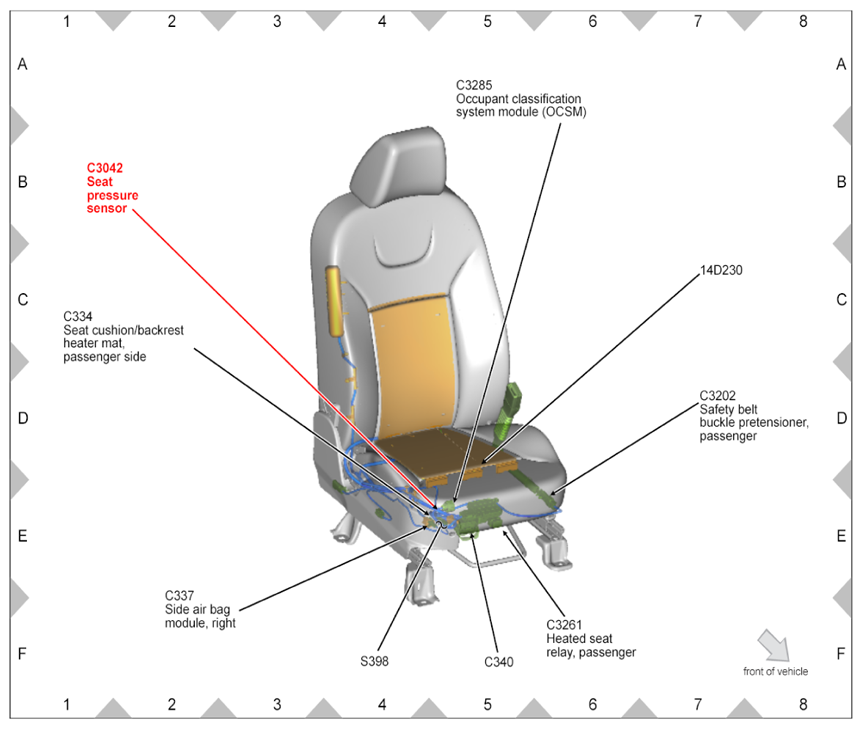

Fig 80: Identifying C334 Seat Cushion/Backrest Heater Mat, Passenger Side Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 81: Identifying C337 Side Air Bag Module, Right Location - Passenger Seat, RH Side

Courtesy of FORD MOTOR CO.

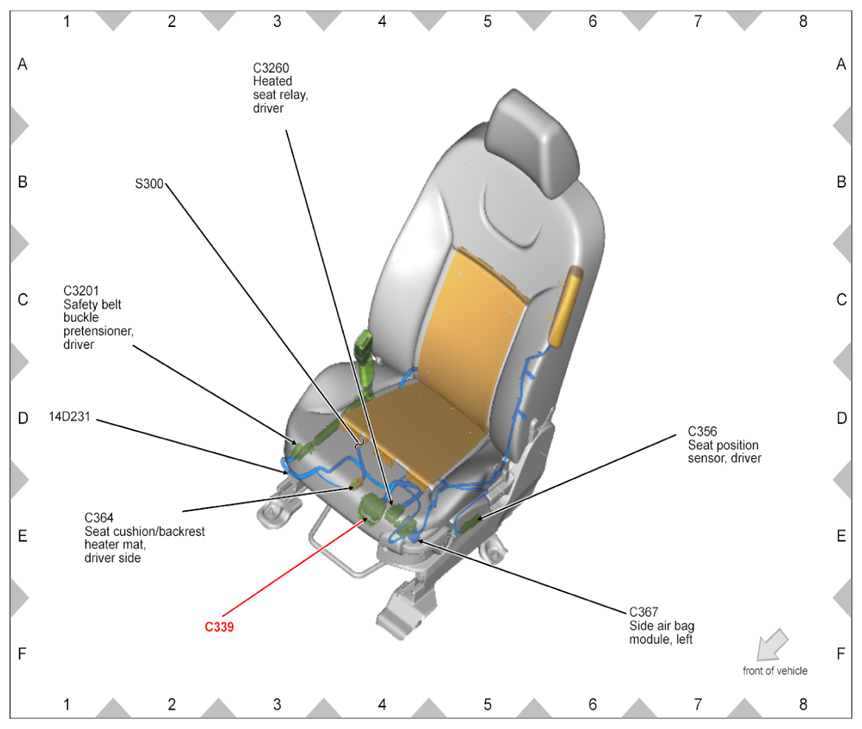

Fig 82: Identifying C339 Connector Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 83: Identifying C340 Connector Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

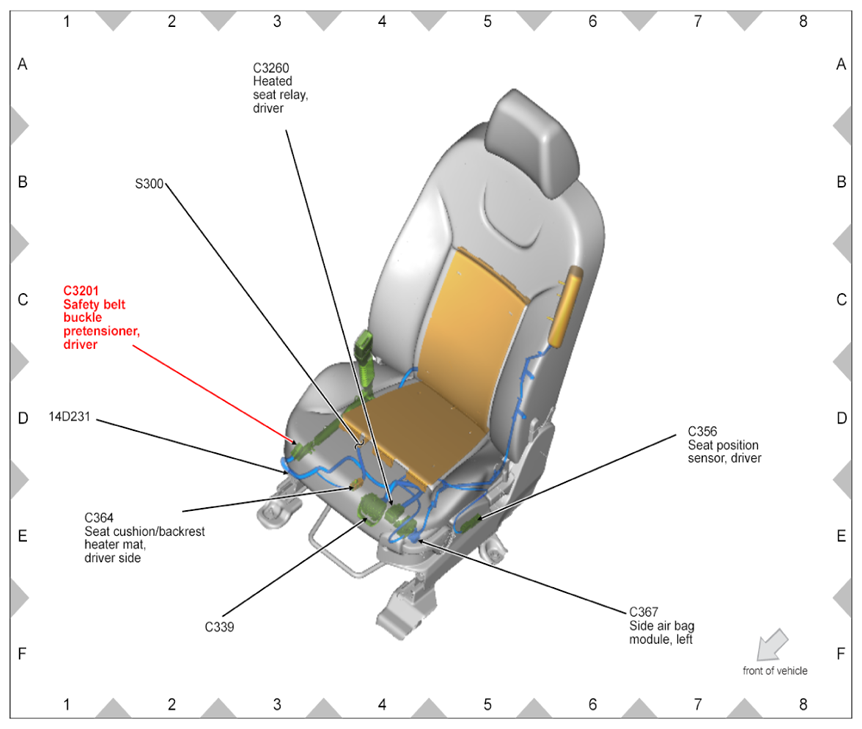

Fig 84: Identifying C356 Seat Position Sensor, Driver Location - Driver Seat, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 85: Identifying C364 Seat Cushion/Backrest Heater Mat, Driver Side Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 86: Identifying C367 Side Air Bag Module, Left Location - Driver Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 87: Identifying C377 EVAP Canister Vent Control Solenoid Location - Underbody Of Vehicle, Rearward Of Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 88: Identifying C389 Safety Belt Tension Sensor, Passenger Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

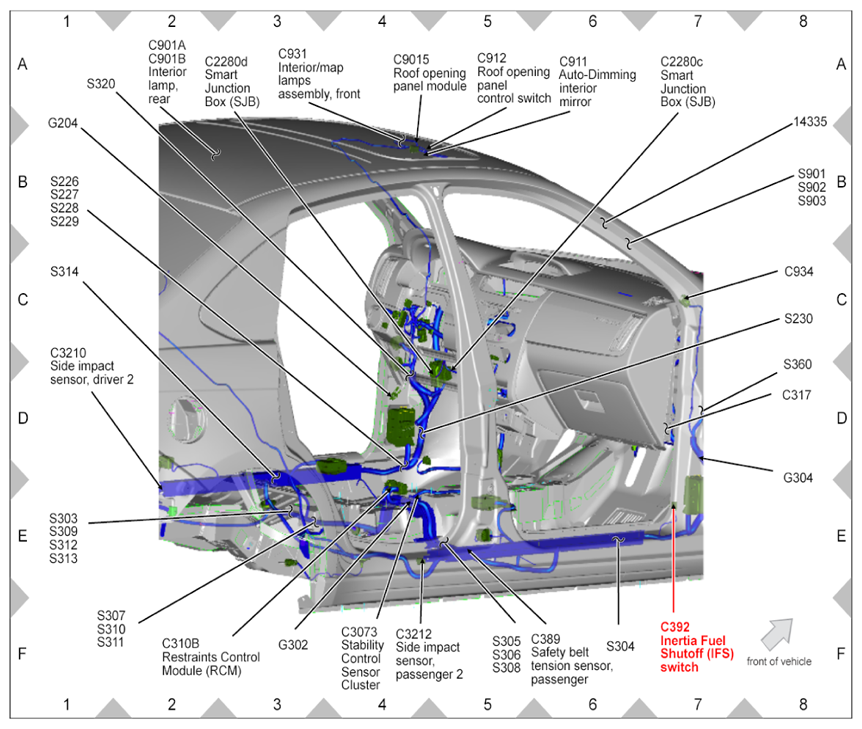

Fig 89: Identifying C392 Inertia Fuel Shutoff (IFC) Switch Location - Behind Passenger Kick Panel

Courtesy of FORD MOTOR CO.

Fig 90: Identifying C400 Antenna Location - On Vehicle Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 91: Identifying C402A Rear Window Defrost Grid Location - Right Side Of Rear Window

Courtesy of FORD MOTOR CO.

Fig 92: Identifying C402B Rear Window Defrost Grid Location - Left Side Of Rear Window

Courtesy of FORD MOTOR CO.

Fig 93: Identifying C410 Connector Location - Left Center Of Rear Bumper

Courtesy of FORD MOTOR CO.

Fig 94: Identifying C422 Connector Location - Underbody Of Vehicle, Rearward Of Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 95: Identifying C426 Wheel Speed Sensor, Right Rear Location - Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 96: Identifying C428 Luggage Compartment Lamp Location - Front Of Trunk

Courtesy of FORD MOTOR CO.

Fig 97: Identifying C430 Luggage Compartment Lid Release Solenoid Location - Rear Of Decklid

Courtesy of FORD MOTOR CO.

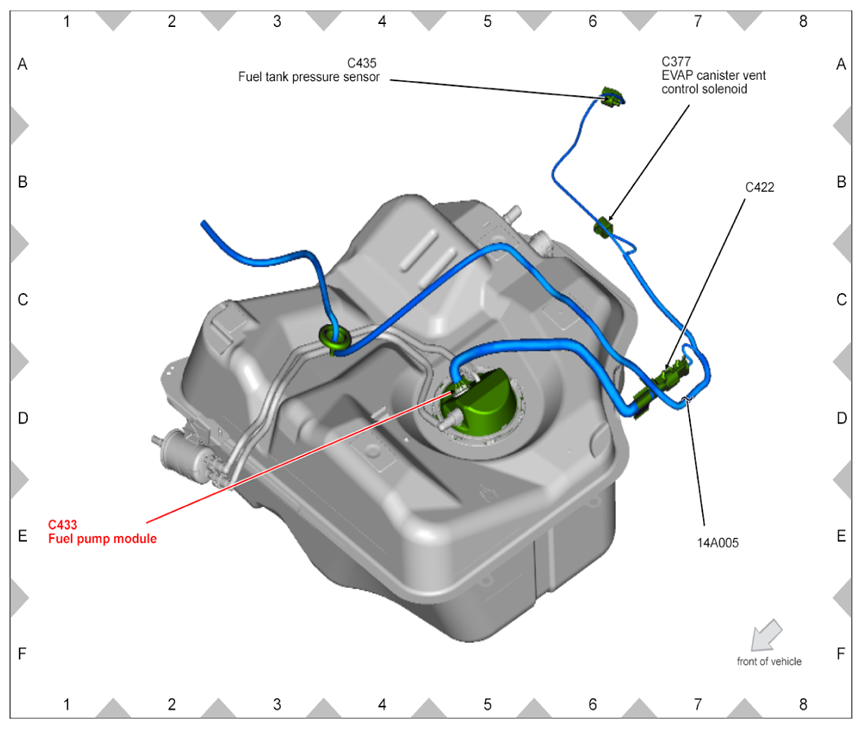

Fig 98: Identifying C433 Fuel Pump Module Location - Underbody Of Vehicle, Rearward Of Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 99: Identifying C435 Fuel Tank Pressure Sensor Location - Underbody Of Vehicle, Rearward Of Fuel Tank

Courtesy of FORD MOTOR CO.

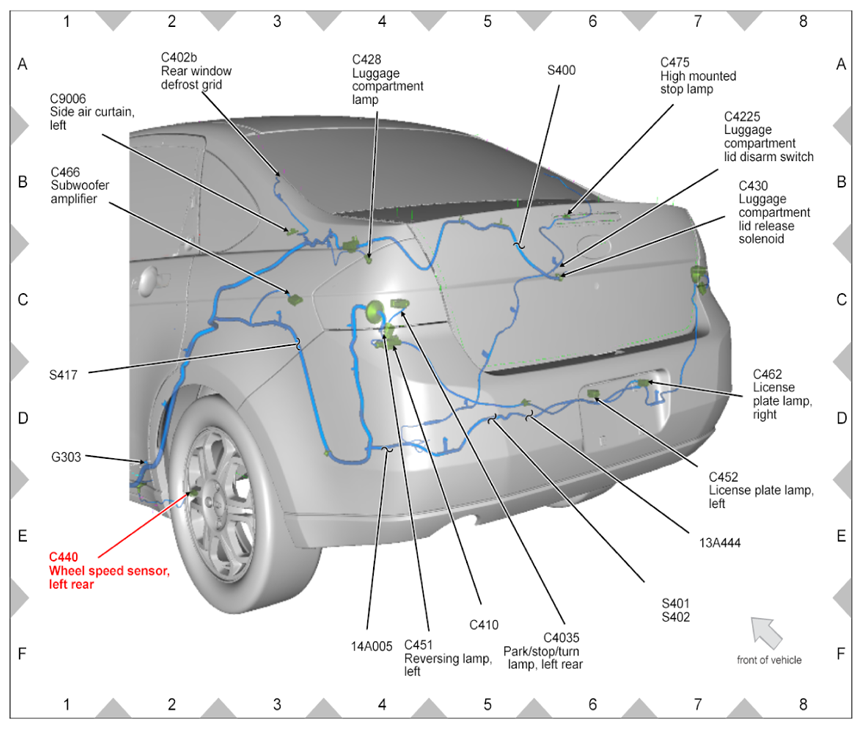

Fig 100: Identifying C440 Wheel Speed Sensor, Left Rear Location - Under Left Rear Of Vehicle Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 101: Identifying C451 Reversing Lamps, Left Location - Left Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 102: Identifying C452 License Plate Lamp, Left Location - Center Of Rear Bumper

Courtesy of FORD MOTOR CO.

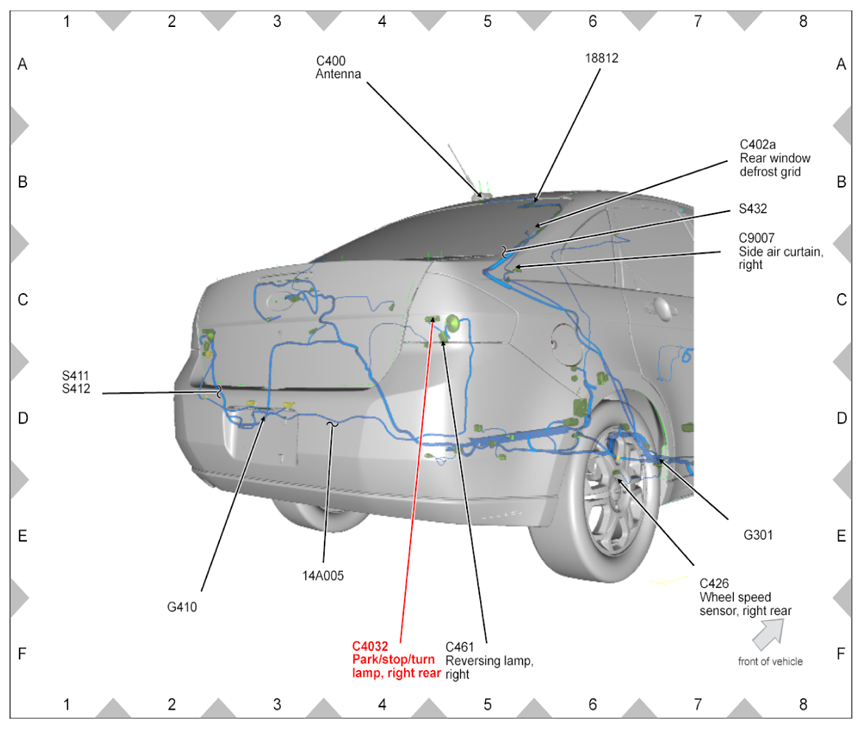

Fig 103: Identifying C461 Reversing Lamps Right Location - Right Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 104: Identifying C462 License Plate Lamp, Right Location - Center Of Rear Bumper

Courtesy of FORD MOTOR CO.

Fig 105: Identifying C466 Subwoofer Amplifier Location - Left Side Of Trunk

Courtesy of FORD MOTOR CO.

Fig 106: Identifying C475 High Mounted Stop Lamp Location - Top Of Rear Decklid

Courtesy of FORD MOTOR CO.

Fig 107: Identifying C504A Master Window Control Switch Location - Driver Door Switch Bank

Courtesy of FORD MOTOR CO.

Fig 108: Identifying C504B Master Window Control Switch Location - Driver Door Switch Bank

Courtesy of FORD MOTOR CO.

Fig 109: Identifying C505 Door Lock Switch, Driver Door Location - Driver Door

Courtesy of FORD MOTOR CO.

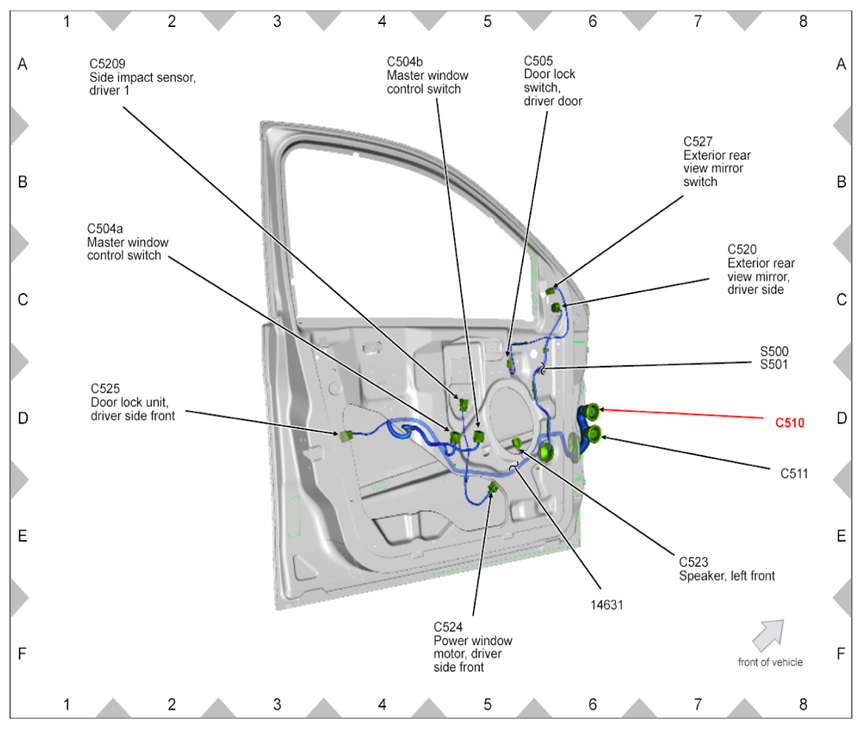

Fig 110: Identifying C510 Connector Location - Between Driver Door And Dash

Courtesy of FORD MOTOR CO.

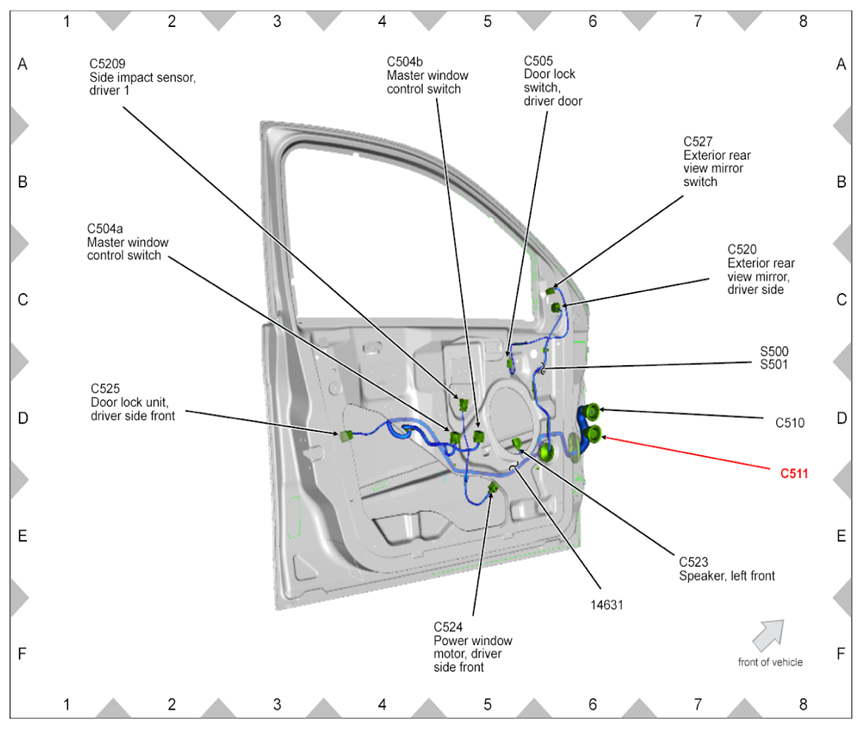

Fig 111: Identifying C511 Connector Location - Between Driver Door And Dash

Courtesy of FORD MOTOR CO.

Fig 112: Identifying C520 Exterior Rear View Mirror, Driver Side Location - Driver Door Front

Courtesy of FORD MOTOR CO.

Fig 113: Identifying C523 Speaker, Left Front Location - Driver Door Front

Courtesy of FORD MOTOR CO.

Fig 114: Identifying C524 Power Window Motor, Driver Side Front Location - Driver Door, Bottom

Courtesy of FORD MOTOR CO.

Fig 115: Identifying C525 Door Lock Unit, Driver Side Front Location - Driver Door Near Latch

Courtesy of FORD MOTOR CO.

Fig 116: Identifying C527 Exterior Rear View Mirror, Switch Location - Driver Door Front

Courtesy of FORD MOTOR CO.

Fig 117: Identifying C601 Exterior Rear View Mirror, Passenger Side Location - Passenger Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 118: Identifying C604 Window Control Switch, Passenger Side Location - Passenger Door, Center

Courtesy of FORD MOTOR CO.

Fig 119: Identifying C605 Door Lock Switch, Passenger Side Location - Passenger Door, Front

Courtesy of FORD MOTOR CO.

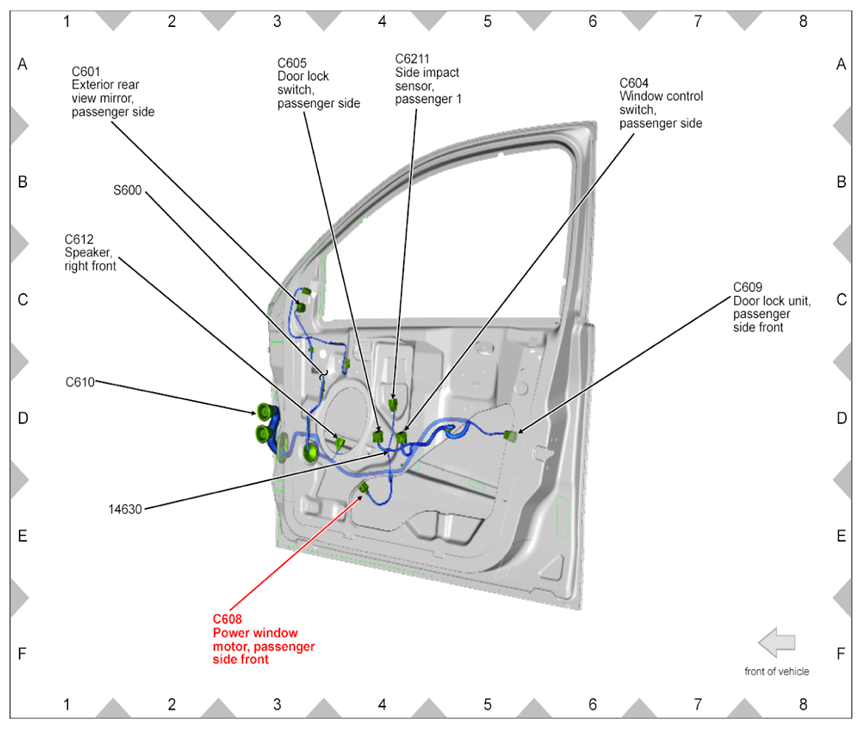

Fig 120: Identifying C608 Power Window Motor, Passenger Side Front Location - Passenger Door, Bottom

Courtesy of FORD MOTOR CO.

Fig 121: Identifying C609 Door Lock Unit, Passenger Side Front Location - Passenger Door, Rear

Courtesy of FORD MOTOR CO.

Fig 122: Identifying C610 Connector Location - Passenger Door, Front

Courtesy of FORD MOTOR CO.

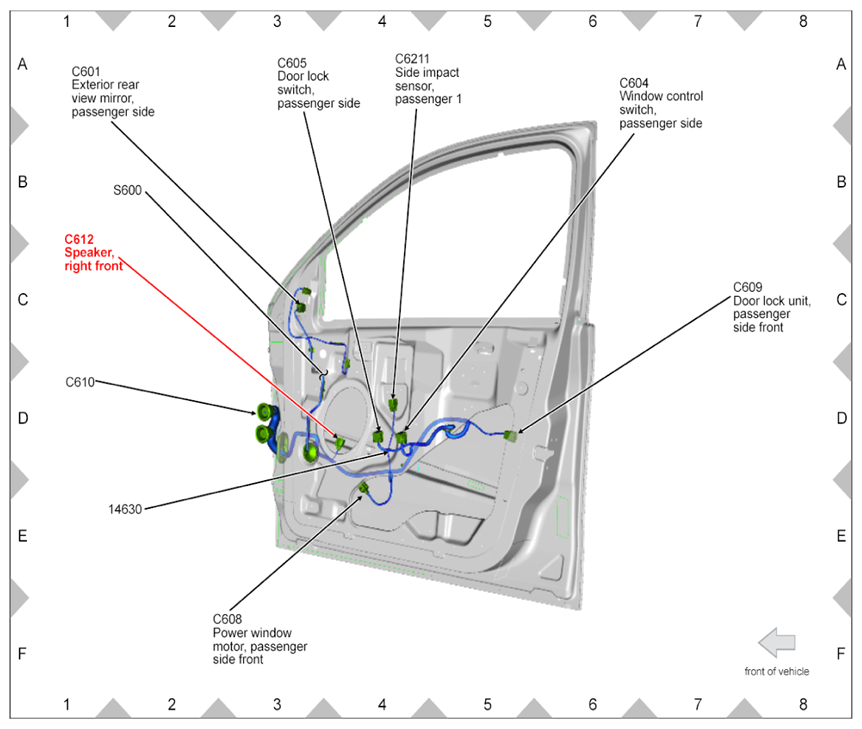

Fig 123: Identifying C612 Speaker Right Front Location - Passenger Door, Front

Courtesy of FORD MOTOR CO.

Fig 124: Identifying C701 Window Control Switch, Left Rear Location - Rear Door, LH Side Center

Courtesy of FORD MOTOR CO.

Fig 125: Identifying C702 Speaker, Left Rear Location - Rear Door, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 126: Identifying C703 Power Window Motor, Left Rear Location - Rear Door, LH Side Center

Courtesy of FORD MOTOR CO.

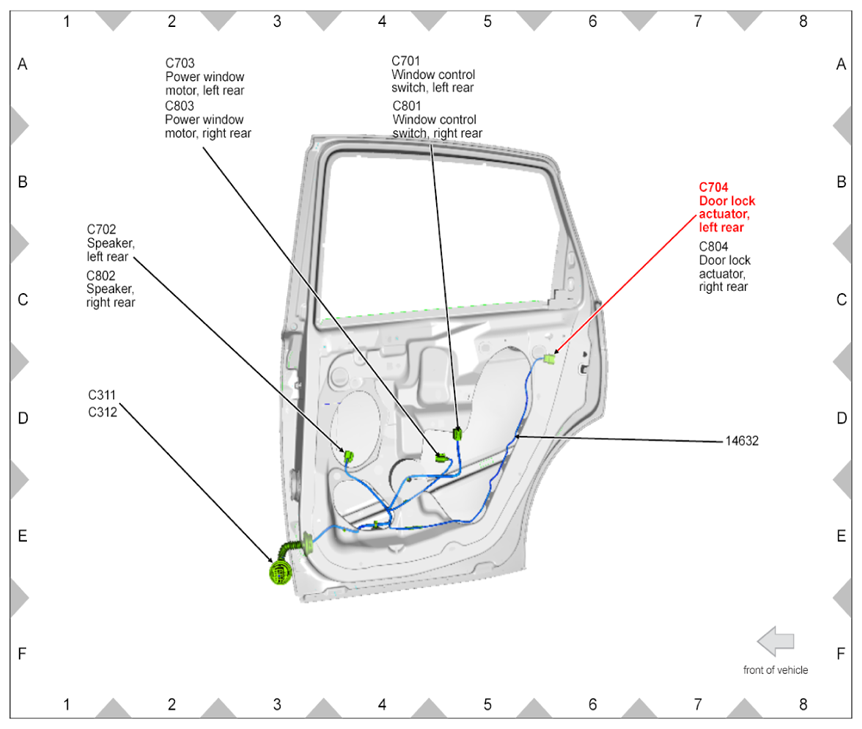

Fig 127: Identifying C704 Door Lock Actuator, Left Rear Location - Rear Door, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 128: Identifying C801 Window Control Switch, Right Rear Location - Rear Door, RH Side Center

Courtesy of FORD MOTOR CO.

Fig 129: Identifying C802 Speaker Right Rear Location - Rear Door, RH Side Front

Courtesy of FORD MOTOR CO.

Fig 130: Identifying C803 Power Window Motor, Right Rear Location - Rear Door, RH Side Center

Courtesy of FORD MOTOR CO.

Fig 131: Identifying C804 Door Lock Actuator, Right Rear Location - Rear Door, RH Side Rear

Courtesy of FORD MOTOR CO.

Fig 132: Identifying C901A Interior Lamp, Rear Location - Center Rear Of Roof

Courtesy of FORD MOTOR CO.

Fig 133: Identifying C901B Interior Lamp, Rear Location - Center Rear Of Roof

Courtesy of FORD MOTOR CO.

Fig 134: Identifying C911 Auto-Dimming Interior Mirror Location - Center Rear Of Roof

Courtesy of FORD MOTOR CO.

Fig 135: Identifying C912 Roof Opening Panel Control Switch Location - Center Rear Of Roof

Courtesy of FORD MOTOR CO.

Fig 136: Identifying C931 Interior/Map, Lamps Assembly, Front Location - Center Rear Of Roof

Courtesy of FORD MOTOR CO.

Fig 137: Identifying C934 Connector Location - A-Pillar Near Top Of Dash

Courtesy of FORD MOTOR CO.

Fig 138: Identifying C1021 Headlamp, Left Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 139: Identifying C1023 Park/Turn Lamp, Left Front Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 140: Identifying C1035A Battery Junction Box (BJB) Location - Engine Compartment LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 141: Identifying C1035B Battery Junction Box (BJB) Location - Engine Compartment LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 142: Identifying C1041 Headlamp, Right Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

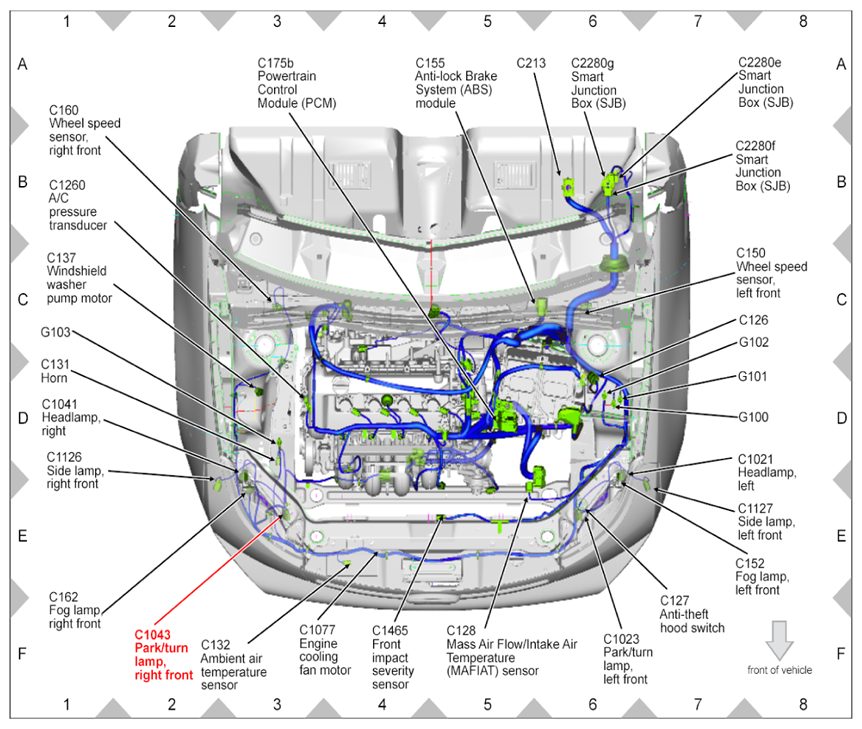

Fig 143: Identifying C1043 Park/Turn Lamp, Right Front Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 144: Identifying C1045 Connector Location - Engine Compartment, Center

Courtesy of FORD MOTOR CO.

Fig 145: Identifying C1077 Engine Cooling Fan Motor Location - Engine Compartment, Front

Courtesy of FORD MOTOR CO.

Fig 146: Identifying C1087 Manifold Absolute Pressure (MAP) Sensor Location - Engine Front

Courtesy of FORD MOTOR CO.

Fig 147: Identifying C1100A Battery Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 148: Identifying C1100B Battery Location - Engine Compartment, Center

Courtesy of FORD MOTOR CO.

Fig 149: Identifying C1100C Battery Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 150: Identifying C1107 Output Shaft Speed (OSS) Sensor Location - (Manual Transmission) On Transmission, Rear

Courtesy of FORD MOTOR CO.

Fig 151: Identifying C1126 Side Lamp, Right Front Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 152: Identifying C1127 Side Lamp, Left Front Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 153: Identifying C1160 EGR Stepper Motor Location - Top RH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 154: Identifying C1164 Cylinder Head Temperature Sensor Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 155: Identifying C1180 Camshaft Position Sensor Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 156: Identifying C1189 Electronic Throttle Control (ETC) Module Location - Engine Front

Courtesy of FORD MOTOR CO.

Fig 157: Identifying C1196 Ignition Transformer Capacitor Location - Top LH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 158: Identifying C1260 A/C Pressure Transducer Location - Engine Compartment RH Side

Courtesy of FORD MOTOR CO.

Fig 159: Identifying C1286 Intake Manifold Runner Control (IMRC) Module Location - Top RH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 160: Identifying C1311 Power Steering Pressure Sensor Location - Engine Front

Courtesy of FORD MOTOR CO.

Fig 161: Identifying C1371 Intake Manifold Runner Control (IMRC) Solenoid Location - Engine Front

Courtesy of FORD MOTOR CO.

Fig 162: Identifying C1465 Front Impact Severity Sensor Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 163: Identifying C2004 Blower Motor Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 164: Identifying C2031 Power Point 2 Location - Bottom Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 165: Identifying C2033 Power Point 1 Location - Bottom Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 166: Identifying C2040 Accelerator Pedal Position Sensor Location - Behind Center Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 167: Identifying C2065 Instrument Panel Dimmer Switch Location - Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 168: Identifying C2072 Clutch Cutoff Switch Location - Behind Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 169: Identifying C2123 Front Display Interface Module (FDIM) Location - Instrument Panel, Top Center

Courtesy of FORD MOTOR CO.

Fig 170: Identifying C2261 Air Inlet Mode Door Actuator Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 171: Identifying C2269 Luggage Compartment Lid Release Switch Location - A-Pillar, Lower Left

Courtesy of FORD MOTOR CO.

Fig 172: Identifying C2278 Mode Door Actuator Location - Behind Center Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 173: Identifying C2280A Smart Junction Box (SJB) Location - Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 174: Identifying C2280B Smart Junction Box (SJB) Location - Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 175: Identifying C2280C Smart Junction Box (SJB) Location - Behind Dash Near A-Pillar

Courtesy of FORD MOTOR CO.

Fig 176: Identifying C2280D Smart Junction Box (SJB) Location - Behind Dash Near A-Pillar

Courtesy of FORD MOTOR CO.

Fig 177: Identifying C2280E Smart Junction Box (SJB) Location - Behind Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 178: Identifying C2280F Smart Junction Box (SJB) Location - Behind Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 179: Identifying C2280G Smart Junction Box (SJB) Location - Behind Instrument Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 180: Identifying C2298 Accessory Protocol Interface Module (APIM) Location - Instrument Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 181: Identifying C2357A HVAC Module Location - Instrument Panel, Center

Courtesy of FORD MOTOR CO.

Fig 182: Identifying C2357B HVAC Module Location - Instrument Panel, Center

Courtesy of FORD MOTOR CO.

Fig 183: Identifying C2398 Global Positioning System Module (GPSM) Location - Instrument Panel, LH Side Top

Courtesy of FORD MOTOR CO.

Fig 184: Identifying C2401 Audio Input Jack Location - Bottom Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 185: Identifying C2402 Front Control Interface Module (FCIM) Location - Instrument Panel, Center

Courtesy of FORD MOTOR CO.

Fig 186: Identifying C3042 Seat Pressure Sensor Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 187: Identifying C3073 Stability Control Sensor Cluster Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 188: Identifying C3201 Safety Belt Buckle Pretensioner, Driver Location - Driver Seat, RH Side

Courtesy of FORD MOTOR CO.

Fig 189: Identifying C3202 Safety Belt Buckle Pretensioner, Passenger Location - Passenger Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 190: Identifying C3210 Side Impact Sensor, Driver 2 Location - Near Base Of B-Pillar

Courtesy of FORD MOTOR CO.

Fig 191: Identifying C3212 Side Impact Sensor, Passenger 2 Location - Near Bottom Of B-Pillar

Courtesy of FORD MOTOR CO.

Fig 192: Identifying C3245 Floor Shifter Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 193: Identifying C3249 Connector Location - In Center Console, Front

Courtesy of FORD MOTOR CO.

Fig 194: Identifying C3260 Heated Seat Relay, Driver Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 195: Identifying C3261 Heated Seat Relay, Passenger Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 196: Identifying C3285 Occupant Classification System Module (OCSM) Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 197: Identifying C3347 Ambient Lighting Module Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 198: Identifying C3349 Connector Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 199: Identifying C4032 Park/Stop/Turn Lamp, Right Rear Location - Right Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 200: Identifying C4035 Park/Stop/Turn Lamp, Left Rear Location - Left Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 201: Identifying C4225 Luggage Compartment Lid Disarm Switch Location - Rear Of Decklid

Courtesy of FORD MOTOR CO.

Fig 202: Identifying C5209 Side Impact Sensor, Driver 1 Location - Driver Door, Near Speaker

Courtesy of FORD MOTOR CO.

Fig 203: Identifying C6211 Side Impact Sensor, Passenger 1 Location - Passenger Door, Center

Courtesy of FORD MOTOR CO.

Fig 204: Identifying C9006 Side Air Curtain, Left Location - Bottom Of Left C-Pillar

Courtesy of FORD MOTOR CO.

Fig 205: Identifying C9007 Side Air Curtain, Right Location - In Right Rear Pillar

Courtesy of FORD MOTOR CO.

Fig 206: Identifying C9015 Roof Opening Panel Module Location - Center Front Of Roof

Courtesy of FORD MOTOR CO.
