Throttle Body: Notes

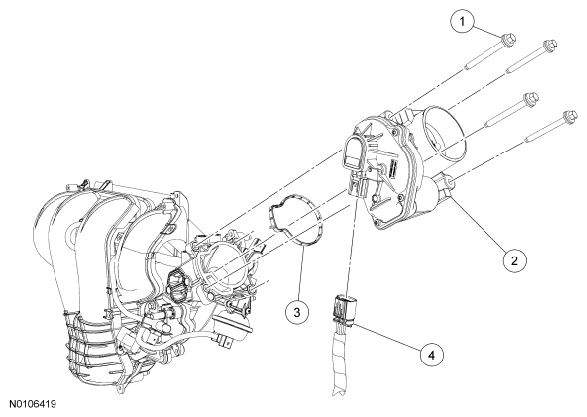

Fig 1: Exploded View Of Throttle Body

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713443	Throttle Body (TB) bolt (4 required)
2	9E926	TB
3	9E936	TB gasket
4	14A464	Electronic throttle control electrical connector (part of 12C508)
