Ambient Lighting Module Connector - C3347

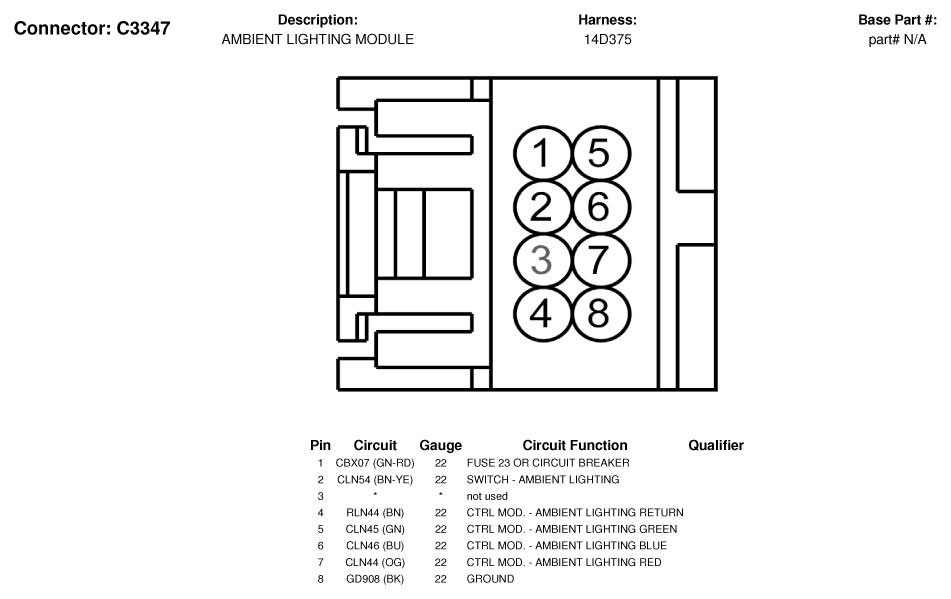

Fig 1: Ambient Lighting Module Connector End View (C3347)
G07335441Courtesy of FORD MOTOR CO.
