Home › Ford › 2011 › Focus SES, Standard › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Front Display Interface Module Connector - C2123

Front Display Interface Module Connector - C2123

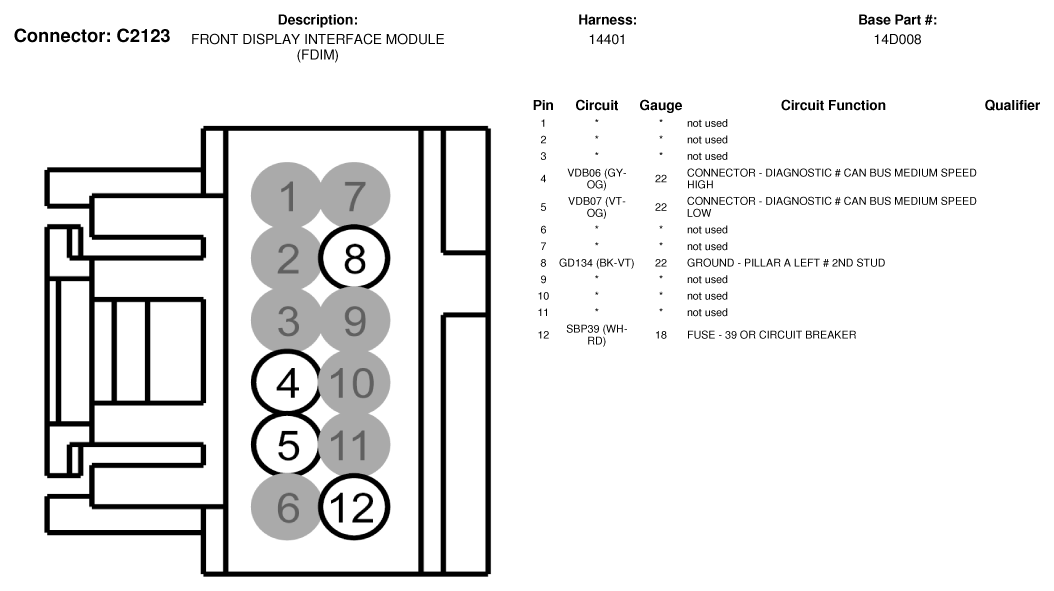

Fig 1: Front Display Interface Module Connector End View (C2123)
G07335411Courtesy of FORD MOTOR CO.
