Intake Manifold Runner Control Module Connector - C1286
Intake Manifold Runner Control Module Connector - C1286

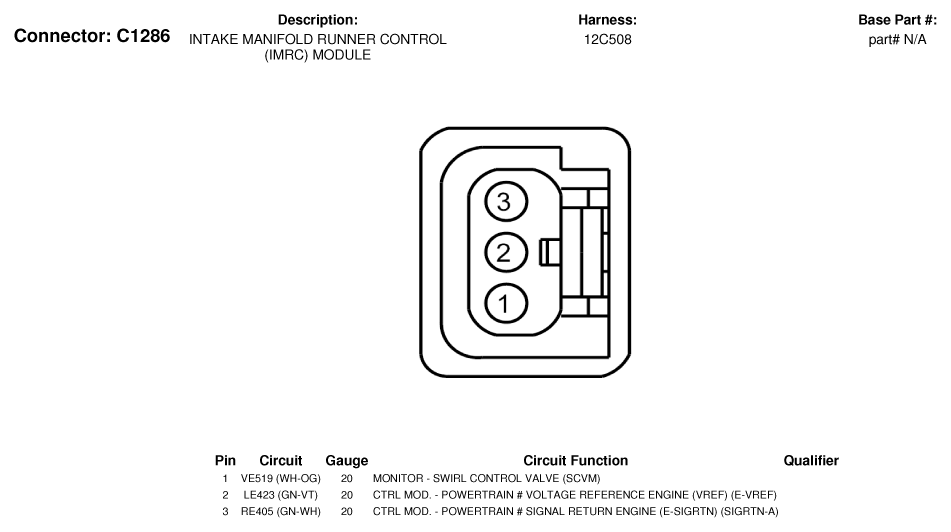

Fig 1: Intake Manifold Runner Control Module Connector End View (C1286)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
