Torque Converter Hub Seal: Assembly

Position the torque converter hub seal in place.

Fig 1: Positioning Torque Converter Hub Seal In Place
Courtesy of FORD MOTOR CO.
Using the Fluid Pump Seal Installer, install the torque converter hub seal.

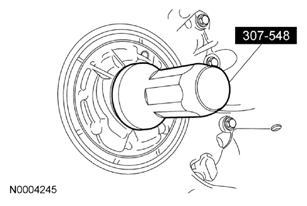

Fig 2: Installing Torque Converter Hub Seal Using The Fluid Pump Seal Installer
Courtesy of FORD MOTOR CO.
Install the torque converter.

Fig 3: Locating Torque Converter
Courtesy of FORD MOTOR CO.
Install the transaxle. For additional information, refer to TRANSAXLE in this service information.
