EGR System Module Connector - C1450

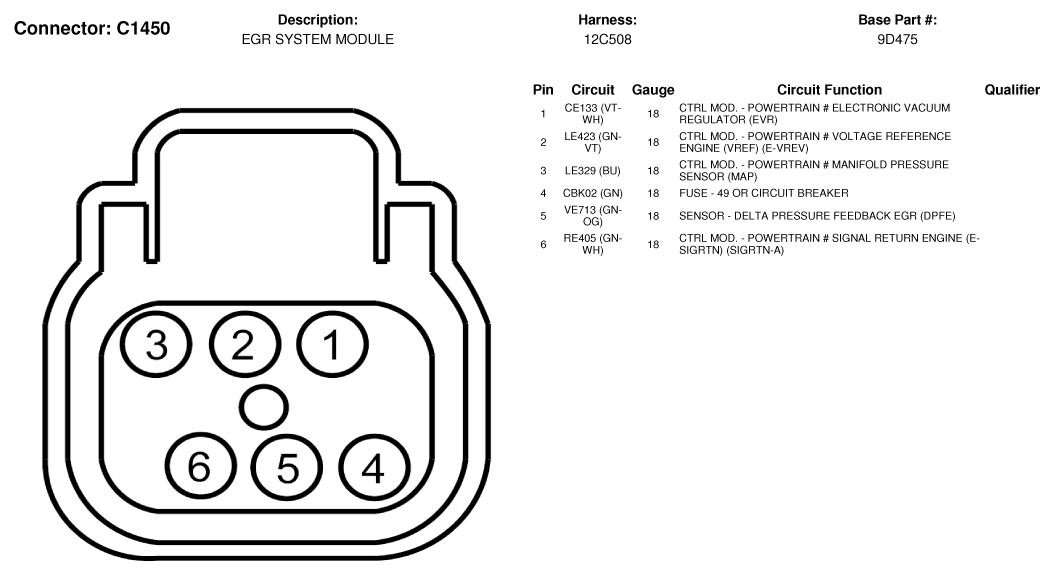

Fig 1: EGR System Module Connector End View (C1450)
G07336684Courtesy of FORD MOTOR CO.
