Electronic Throttle Control Module Connectors - C1449
Electronic Throttle Control Module Connectors - C1449

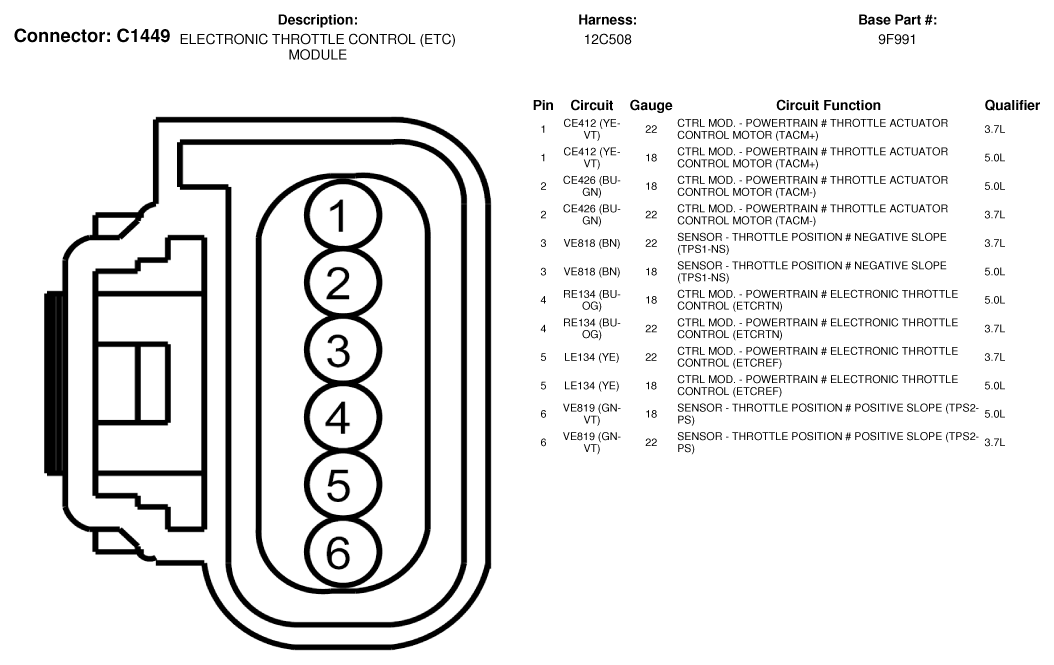

Fig 1: Electronic Throttle Control Module Connector End View (C1449)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
