Left Front Wheel Speed Sensor Connector

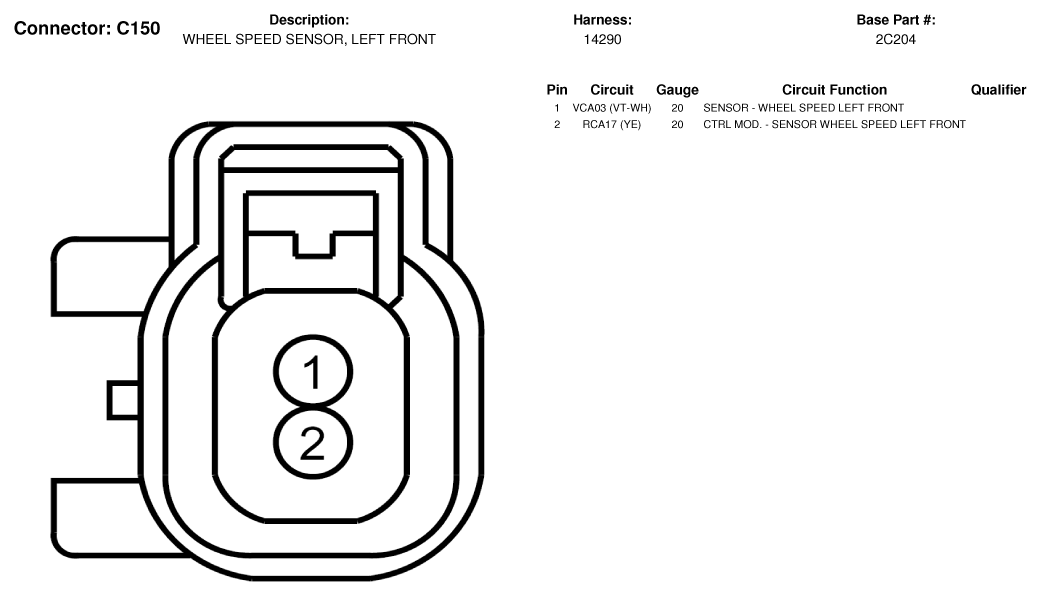

Fig 1: Left Front Wheel Speed Sensor Connector End View (C150)
G07336509Courtesy of FORD MOTOR CO.
