Occupant Classification Sensor Module Connector - C3043
Occupant Classification Sensor Module Connector - C3043

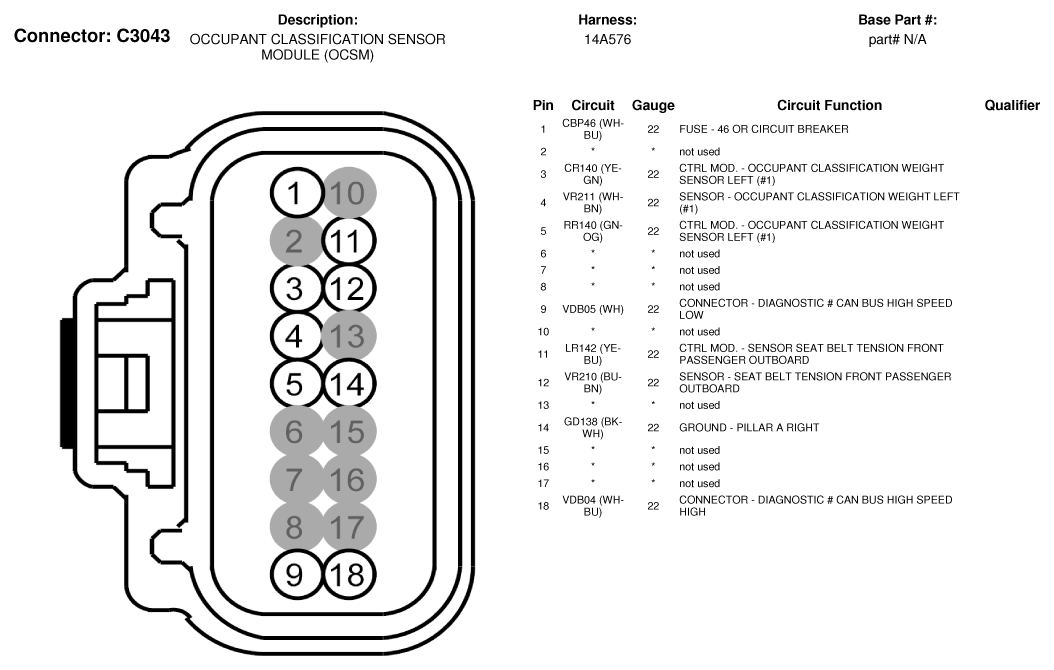

Fig 1: Occupant Classification Sensor Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
