Blower Motor Speed Control: Notes
WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

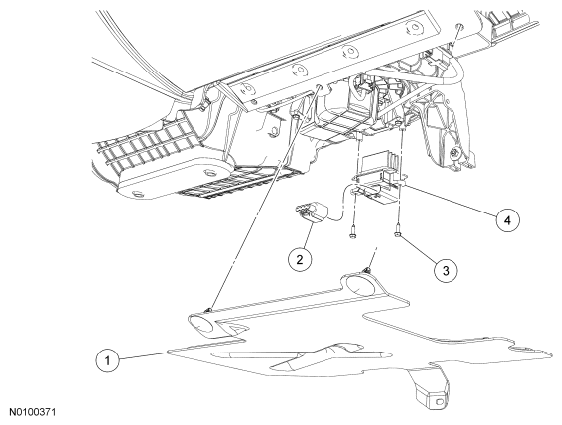

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
54043A88 |
RH lower instrument panel insulator |
| 2 |
- |
Blower motor speed control electrical connector (part of 12B637) |
| 3 |
W701696 |
Blower motor speed control screw (2 required) |
| 4 |
19E624 |
Blower motor speed control |
