Molded Leadframe: Notes

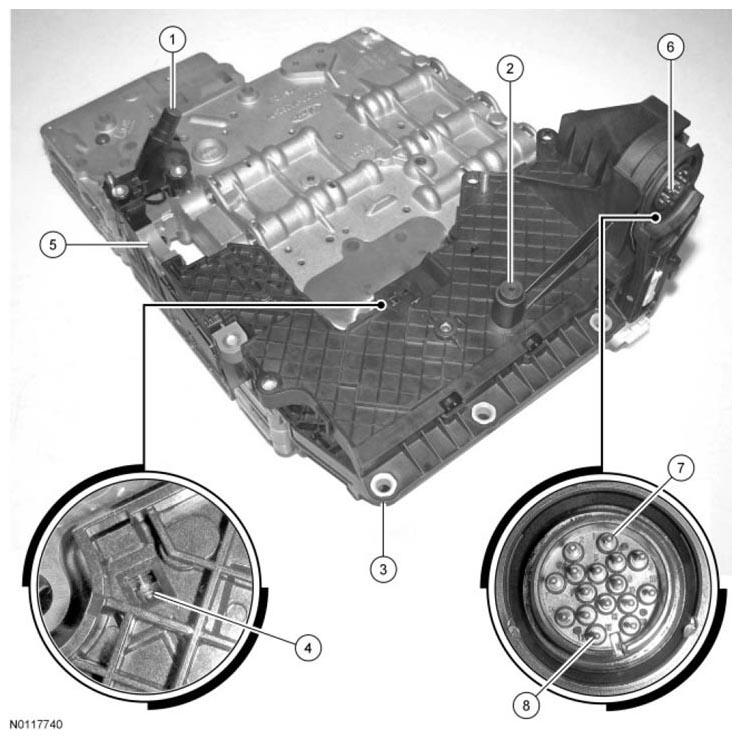

Fig 1: Identifying Molded Leadframe Components

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Turbine Shaft Speed (TSS) sensor
2	-	Output Shaft Speed (OSS) sensor 3 7G276 Molded leadframe
4	-	Transmission Fluid Temperature (TFT) sensor
5	-	Transmission Range (TR) sensor
6	-	Leadframe connector
7	-	Terminal 1
8	-	Terminal 16
