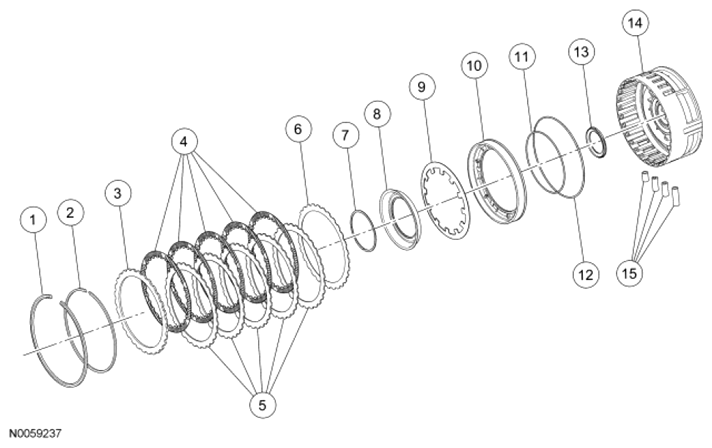

Intermediate Clutch Assembly
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D483 | Center support retaining ring |
| 2 | 7D483 | Intermediate clutch pack retaining ring |
| 3 | 7B066 | Intermediate clutch pressure plate |
| 4 | 7B164 | Intermediate clutch internal splined friction plates (quantity model dependent) |
| 5 | 7B442 | Intermediate clutch external splined steel plates (quantity model dependent) |
| 6 | 7E085 | Intermediate clutch cushion spring |
| 7 | 7A577 | Intermediate clutch snap ring |
| 8 | 7B043 | Intermediate clutch return spring retaining ring |
| 9 | 7A480 | Intermediate clutch piston return spring |
| 10 | 7E005 | Intermediate clutch piston (model dependent) |
| 11 | 7F225 | Intermediate clutch piston inner seal |
| 12 | 7F224 | Intermediate clutch piston outer seal |
| 13 | 7F373 | Bearing (T6) |
| 14 | 7A130 | Intermediate/low/reverse clutch center support |
| 15 | 7G199 | Center support seals (2 - 7G199, 1 - 7G087, 1 - 7G484) |
