Left Front Lumbar Control Switch Connector - C361
Left Front Lumbar Control Switch Connector - C361

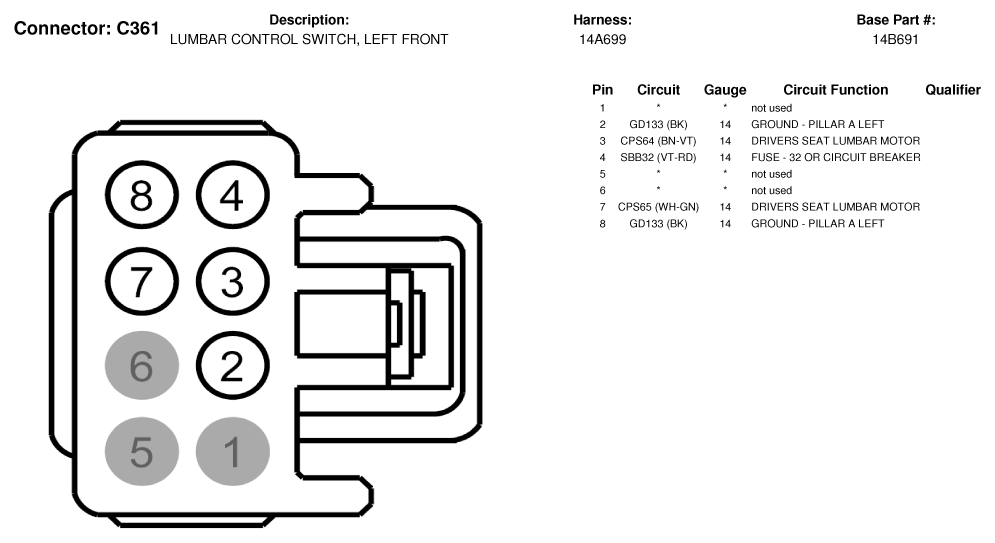

Fig 1: Left Front Lumbar Control Switch Connector End View (C361)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
