Starter Motor: Notes

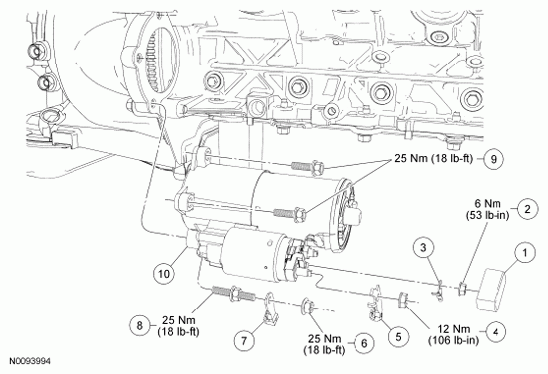

Fig 1: Starter Motor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

STARTER MOTOR PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Terminal cover (part of 14463)
2	W705790	Starter solenoid S-terminal nut
3	14463	Starter solenoid S-terminal eyelet
4	W706414	Starter solenoid B-terminal nut
5	14463	Starter solenoid B-terminal eyelet
6	N805024	Starter motor ground cable nut
7	14463	Starter motor ground cable eyelet
8	W704941	Starter motor mounting stud bolt
9	W704942	Starter motor mounting bolts (2 required)
10	11000	Starter motor
