Module Communications Network: Notes

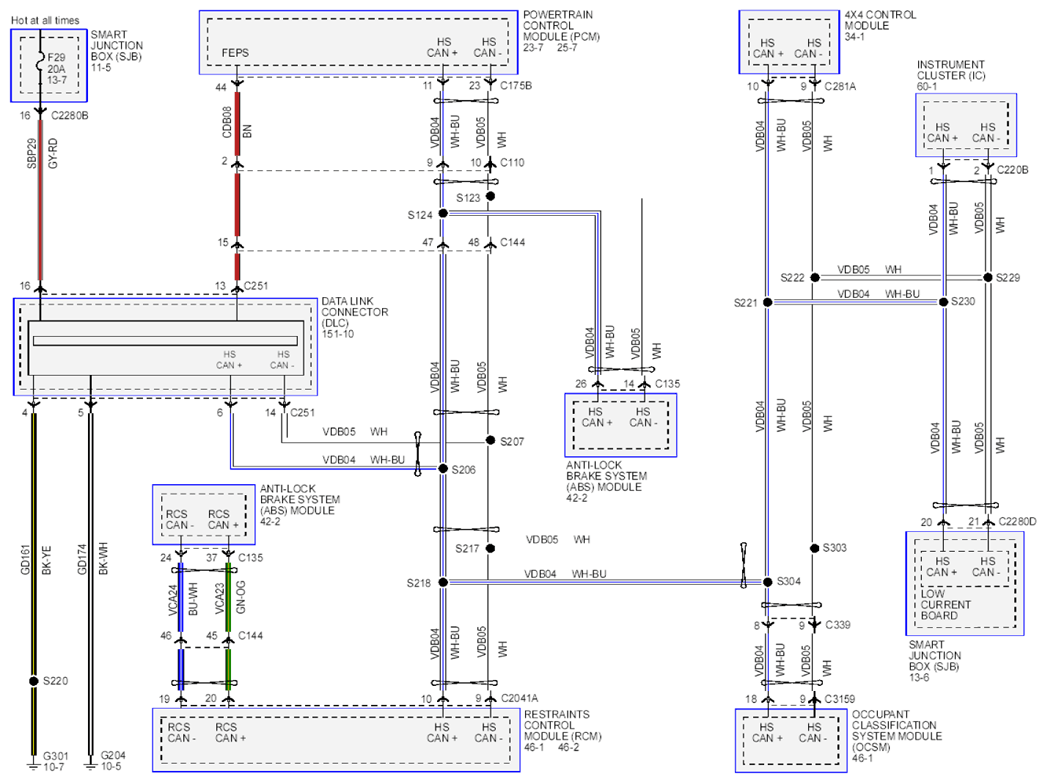

Fig 1: Module Communications Network Circuit Diagram
G07881725Courtesy of FORD MOTOR CO.
