Steering Column Shaft: Notes

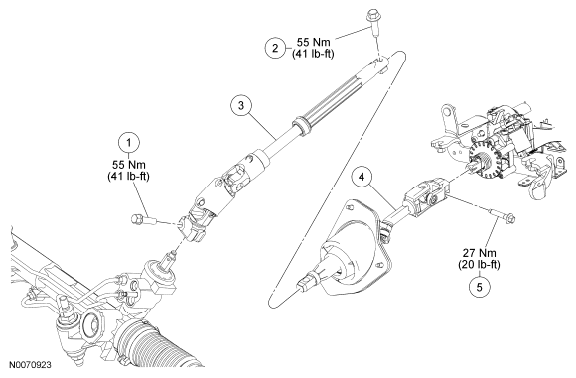

Fig 1: Exploded View Of Steering Column Shaft With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N801614	Lower steering column shaft-to-steering gear bolt
2	N801614	Lower steering column shaft-to-upper steering column shaft bolt
3	3C662	Lower steering column shaft
4	3E751	Upper steering column shaft
5	N808684	Upper steering column shaft-to-steering column bolt
