Anti-Lock Brake System (ABS) Module: Notes

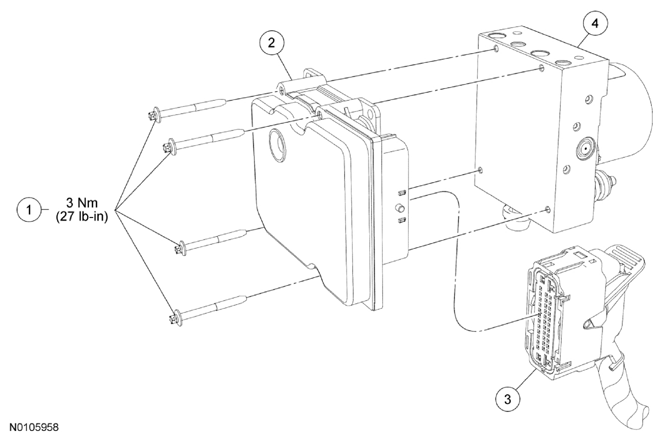

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	ABS module screws (part of 2C219) (4 required)
2	2C219	ABS module
3	-	ABS module electrical connector (part of 14290)
4	2C215	Hydraulic Control Unit (HCU)
