Speed Control Actuator: Notes

WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

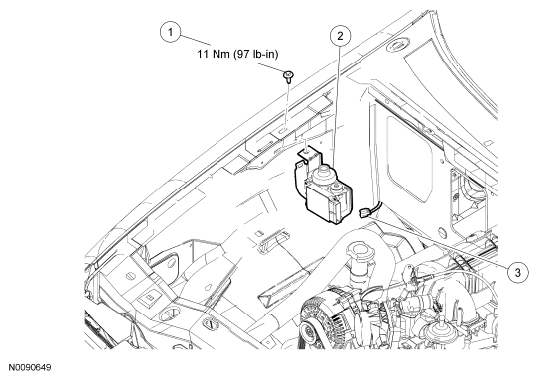

Fig 1: Speed Control Actuator Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Speed control actuator bolt
2	9C734	Speed control actuator and bracket assembly
3	-	Speed control actuator electrical connector (part of 14290)
