Audio System_Navigation: Notes

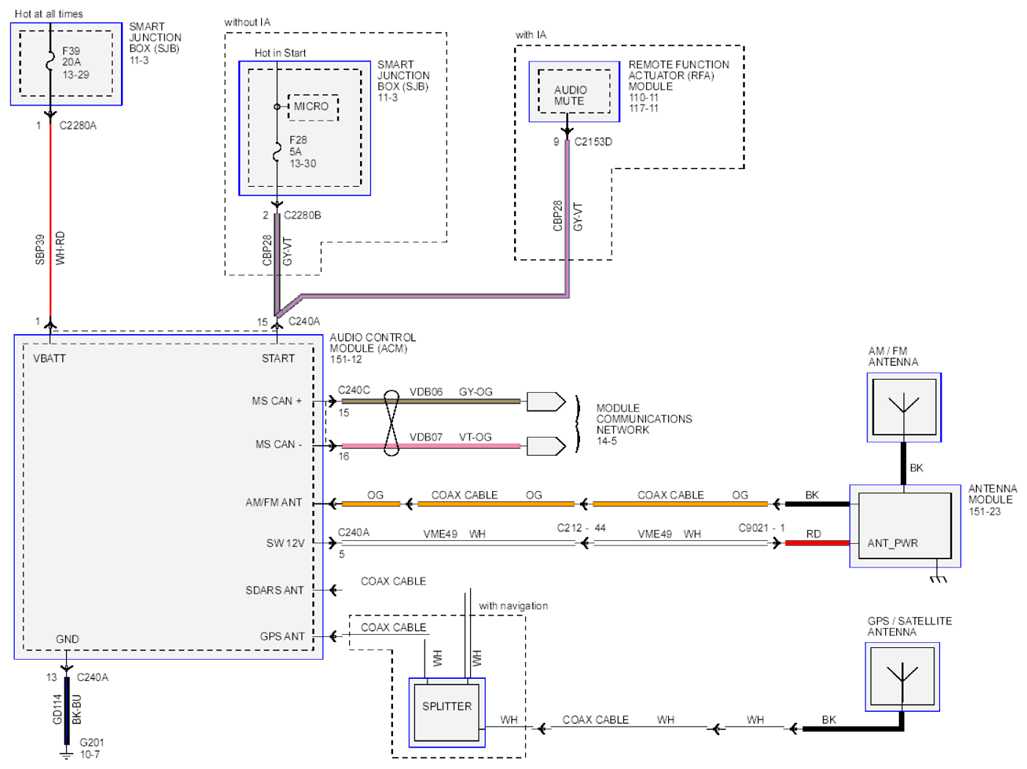

Fig 1: Audio System Navigation Circuit Diagram
G07882355Courtesy of FORD MOTOR CO.
