Smart Junction Box (SJB): Notes

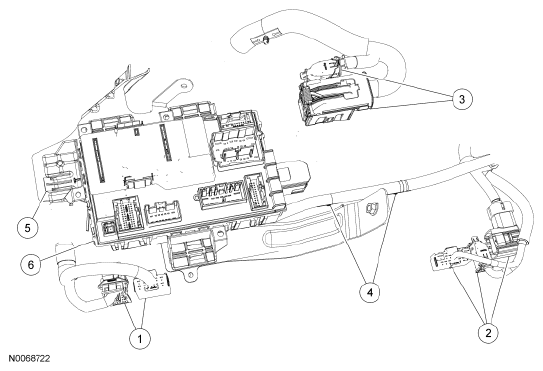

Fig 1: Identifying Smart Junction Box (SJB) Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Smart Junction Box (SJB) electrical connectors (part of 14401)
2	-	SJB electrical connectors (part of 14290)
3	-	SJB electrical connectors (part of 14A005)
4	-	Harness push pins (2 required)
5	-	SJB release tab
6	15604	SJB
