Wheel Speed Sensor - Rear: Notes

NOTE: LH side shown in illustration, RH side similar.

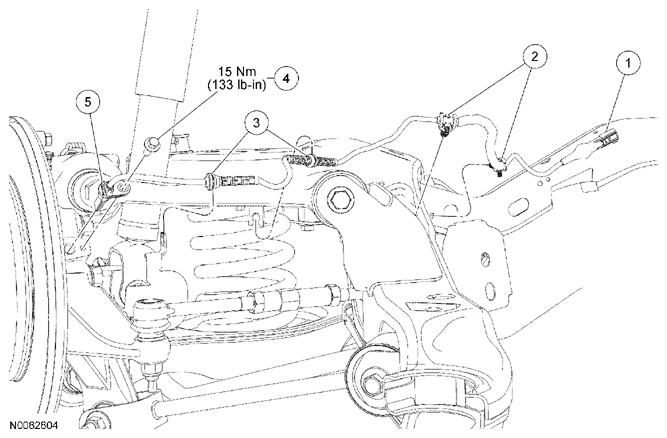

Fig 1: Wheel Speed Sensor Replacement Components With Torque Specifications -- Rear

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 2C190)
2	-	Wheel speed sensor pin-type retainers (part of 2C190)
3	-	Wheel speed sensor harness retainers (part of 2C190)
4	W505255	Wheel speed sensor bolt
5	2C190	Wheel speed sensor
