Home › Ford › 2011 › Taurus SE › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › All Wheel Drive Module Connector - C281

All Wheel Drive Module Connector - C281

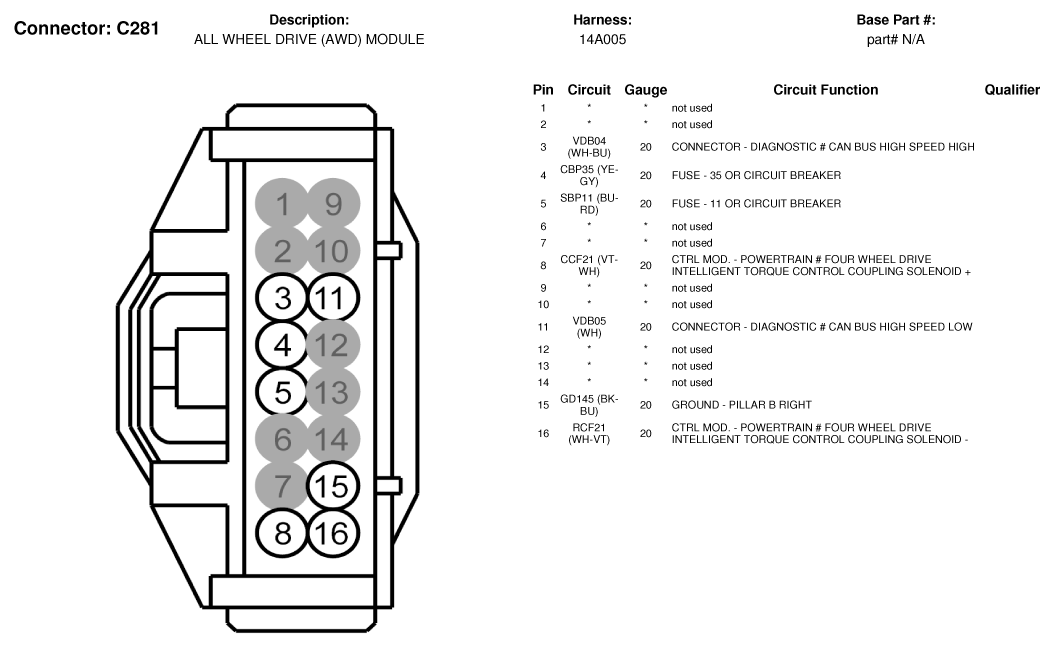

Fig 1: All Wheel Drive Module Connector End View (C281)
G07339939Courtesy of FORD MOTOR CO.
