Anti-Lock Brake System Module Connector - C135
Anti-Lock Brake System Module Connector - C135

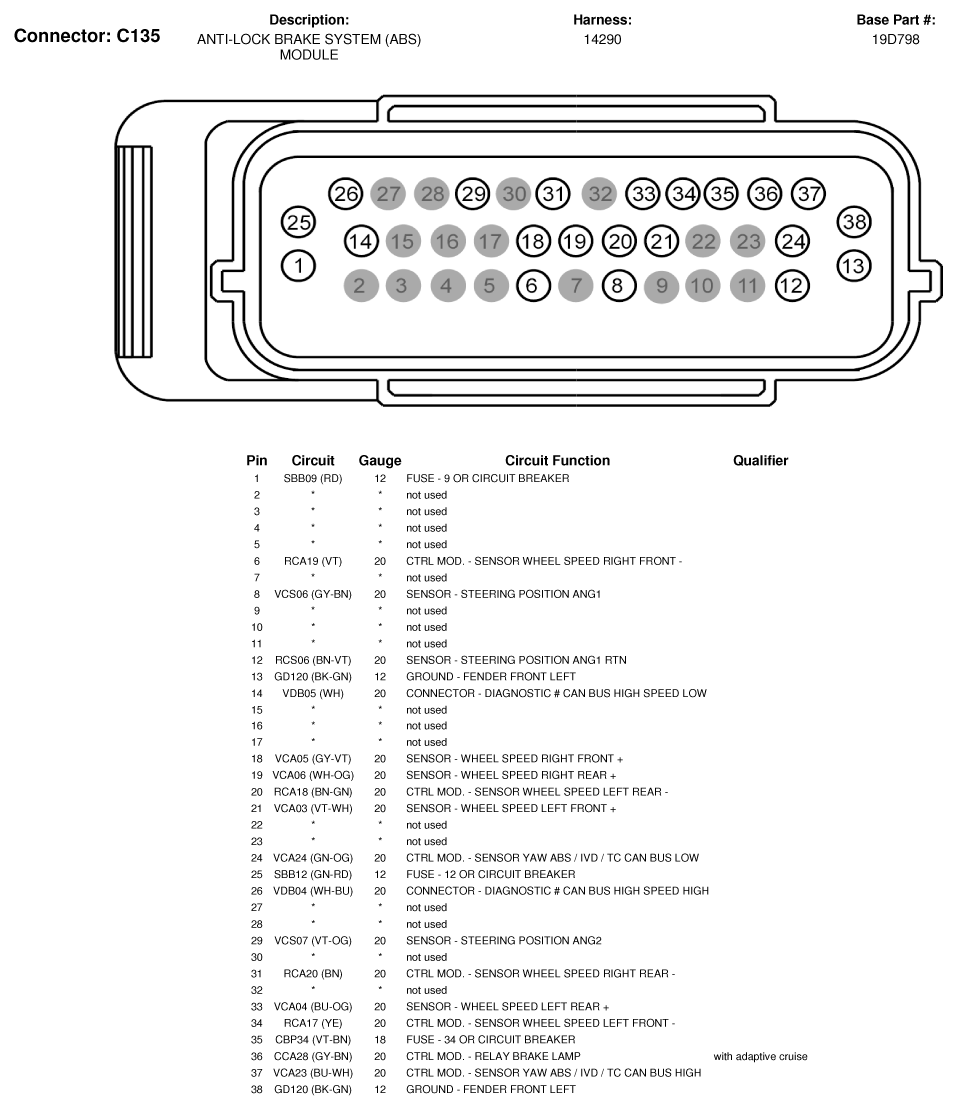

Fig 1: Anti-Lock Brake System Module Connector End View (C135)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
