Driver Safety Canopy Module Connector - C9031

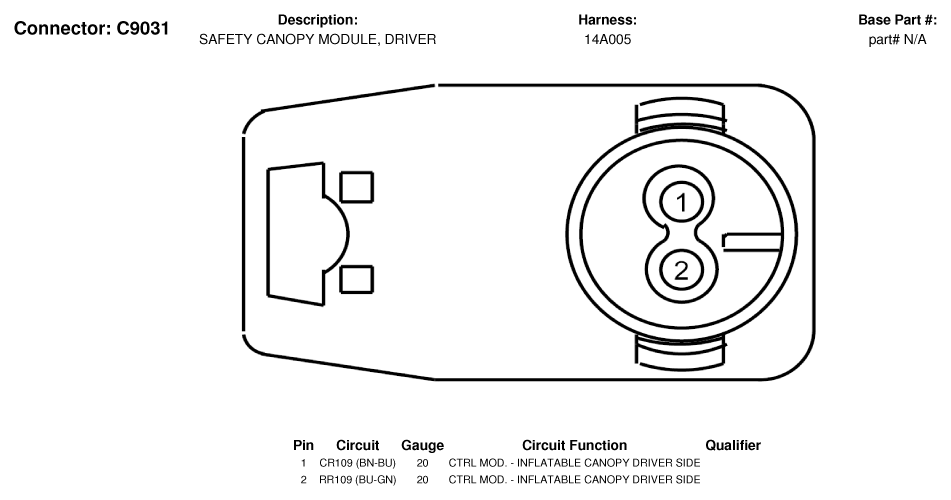

Fig 1: Driver Safety Canopy Module Connector End View (C9031)
G07340251Courtesy of FORD MOTOR CO.
