Interior Lighting Control Module Connector - C2392

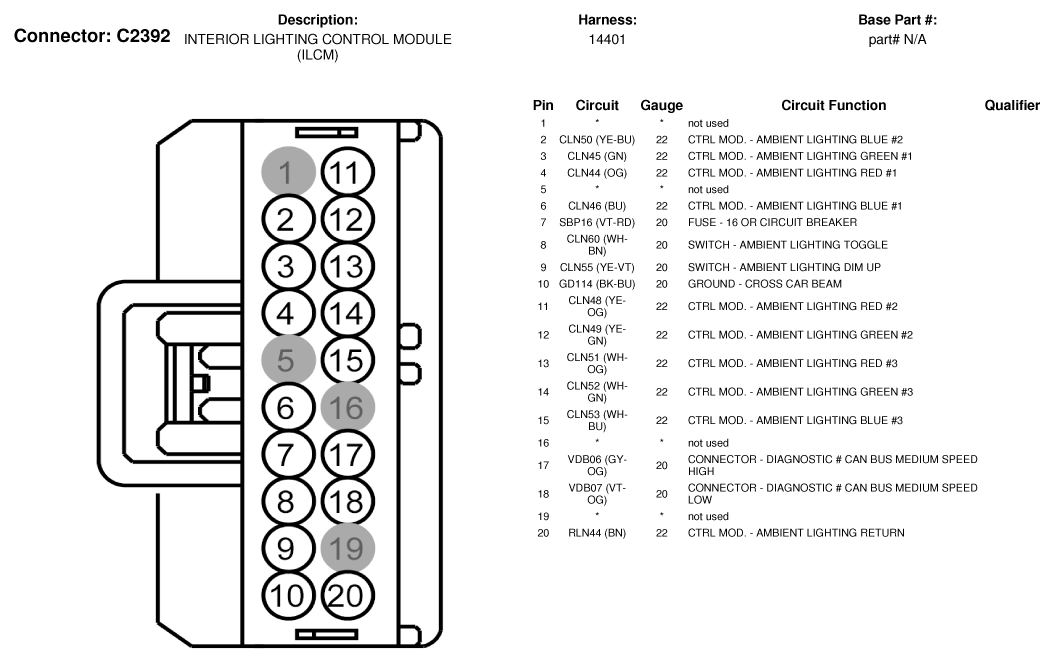

Fig 1: Interior Lighting Control Module Connector End View (C2392)
G07340139Courtesy of FORD MOTOR CO.
