Passenger Safety Canopy Module Connector - C9032

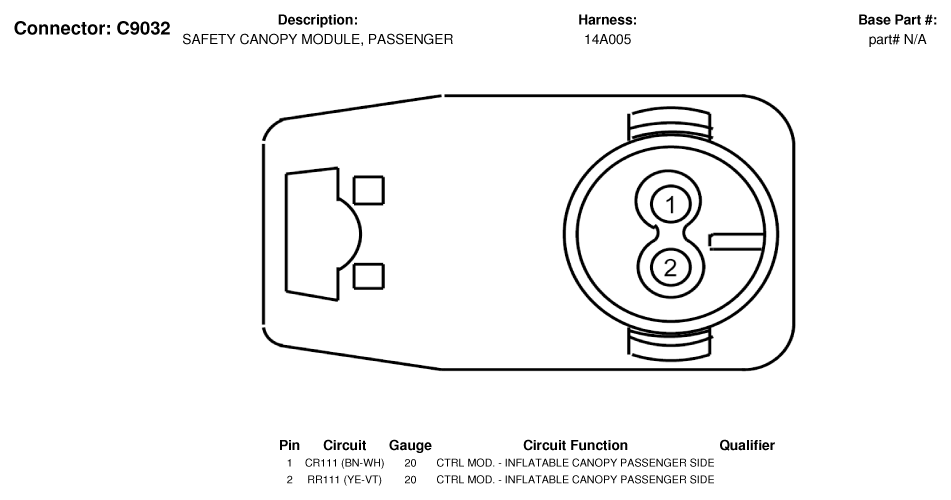

Fig 1: Passenger Safety Canopy Module Connector End View (C9032)
G07340252Courtesy of FORD MOTOR CO.
