Passenger Air Bag Module - MKX: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

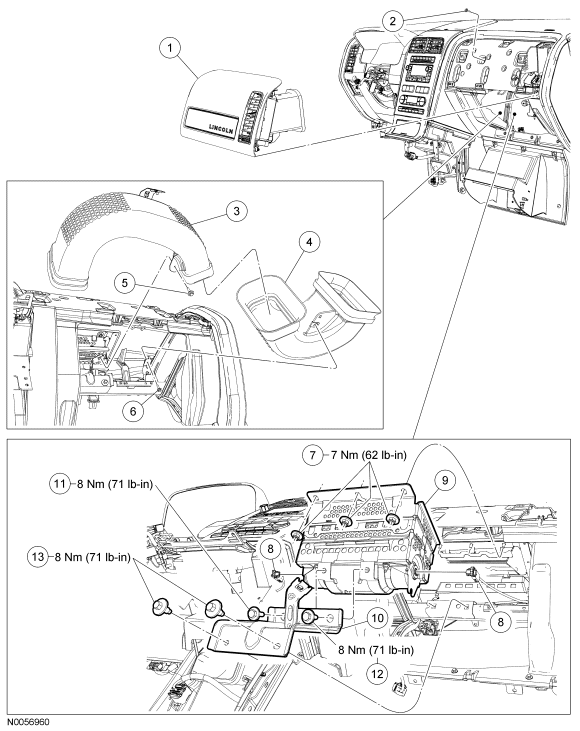

| Item | Part Number | Description |
|---|---|---|
| 1 | 04338 | RH instrument panel (I/P) finish panel |
| 2 | W707628 | LH duct assembly bracket screw |
| 3 | 19B680 | LH duct assembly |
| 4 | 19B680 | RH duct assembly |
| 5 | W707628 | LH duct assembly screw |
| 6 | W707628 | RH duct assembly screw |
| 7 | W701014 | Passenger air bag module nuts (3 required) |
| 8 | - | Passenger air bag module electrical connectors (2 required) (part of 14401) |
| 9 | 044A74 | Passenger air bag module |
| 10 | - | Passenger air bag module support bracket |
| 11 | W505422 | Inboard passenger air bag module-to-bracket bolt |
| 12 | W505422 | Outboard passenger air bag module-to-bracket bolt |
| 13 | W503922 | Passenger air bag module bracket-to-cross vehicle beam bolts (2 required) |
