Seat Pressure Sensor Connector - C3042
Seat Pressure Sensor Connector - C3042

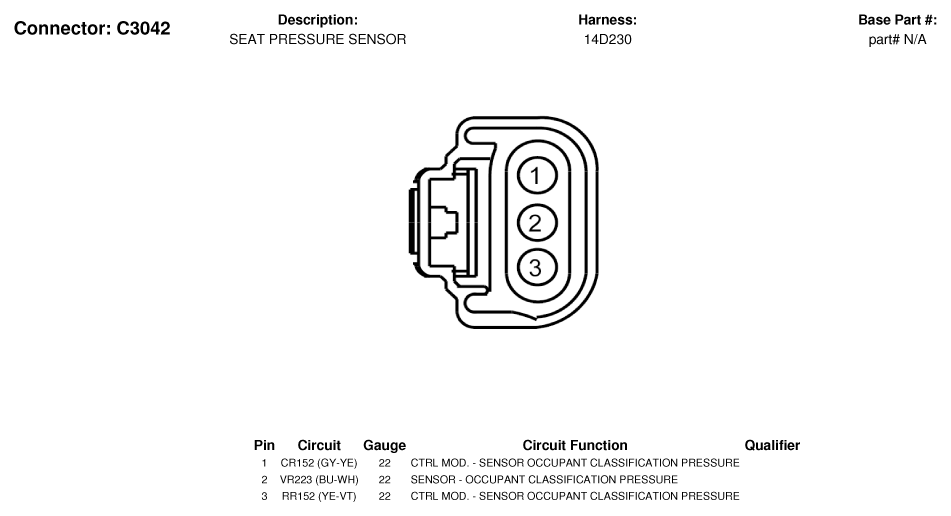

Fig 1: Seat Pressure Sensor Connector End View (C3042)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
