Backrest Removal View: Notes

NOTE: LH shown in illustration, RH similar.

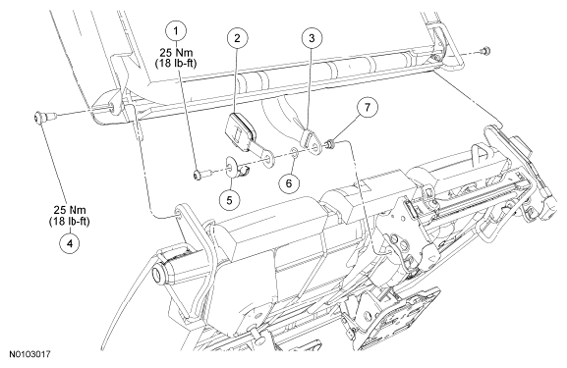

Fig 1: Exploded View Of Backrest Removal Components With Torque Specification

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	00813	Center safety belt anchor and LH safety belt buckle bolt
2	60045	LH safety belt buckle
3	-	Center safety belt anchor (part of 611B68)
4	W701210	Backrest bolt (2 required)
5	60328	Safety belt buckle and anchor cover
6	00810	Washer
7	610D00	Spacer
