Anti-Lock Brake System (ABS) Module: Notes

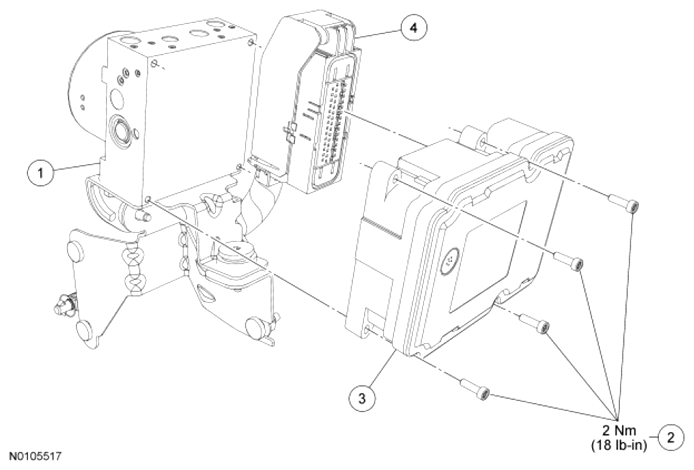

Fig 1: Anti-Lock Brake System (ABS) Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	2M110	Hydraulic Control Unit (HCU) (vehicles not equipped with AdvanceTrac® with Roll Stability Control (RSC®))
1	2C405	HCU  (vehicles equipped with AdvanceTrac® with RSC®  )
2	-	ABS module screws (part of 2M110 or 2C405 service kit) (4 required)
3	2C219	ABS module (vehicles not equipped with AdvanceTrac® with RSC®  )
3	2C405	ABS module (vehicles equipped with AdvanceTrac® with RSC®  )
4	-	ABS module electrical connector (part of 14290)
