Hydraulic Control Unit (HCU): Material
MATERIAL REFERENCE CHART
| Item | Specification |
|---|---|
| Super DOT 4 Motor Vehicle Brake Fluid YS4Z-19542-AA |
ESD-M6C57-A or WSS-M6C65-A2 |

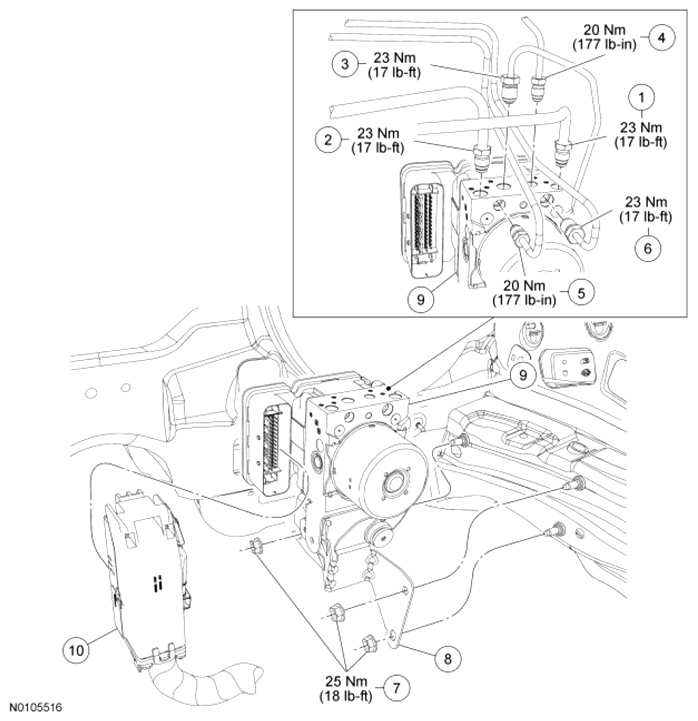

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Master cylinder primary brake tube fitting (part of 2234) |
| 2 | - | Master cylinder secondary brake tube fitting (part of 2234) |
| 3 | - | LH front brake tube fitting (part of 2C293) |
| 4 | - | RH front brake tube fitting (part of 2C292) |
| 5 | - | RH rear brake tube fitting (part of 2C294) |
| 6 | - | LH rear brake tube fitting (part of 2C295) |
| 7 | W520413 | Hydraulic Control Unit (HCU) bracket-to-frame nuts (3 required) |
| 8 | 2B389 | HCU bracket |
| 9 | 2C286 | HCU |
| 10 | - | ABS module electrical connector (part of 14290) |
