A/C Compressor Cycling Switch Connector - C1081

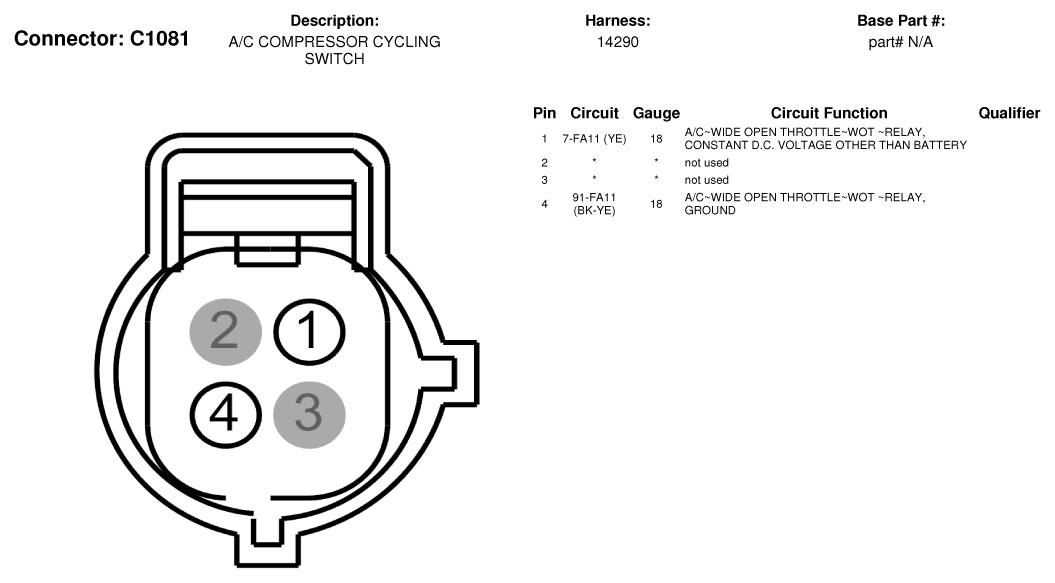

Fig 1: A/C Compressor Cycling Switch Connector End View (C1081)
G07337375Courtesy of FORD MOTOR CO.
