Block Connector - C3509
Block Connector - C3509

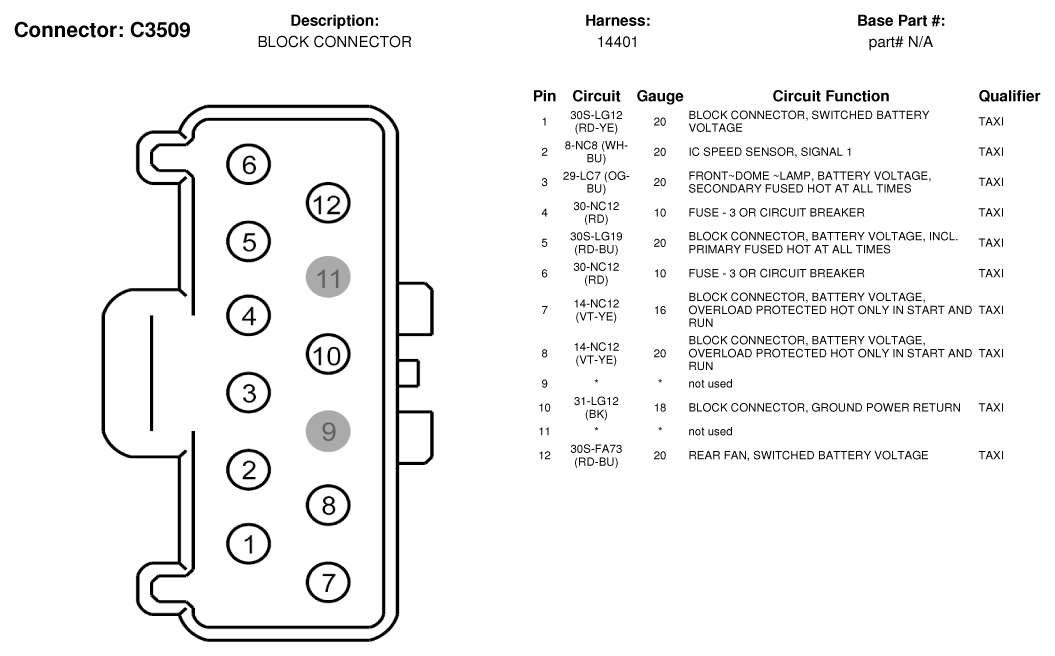

Fig 1: Block Connector Connector End View (C3509)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
