Climate Control Assembly Connectors - C2892
Climate Control Assembly Connectors - C2892

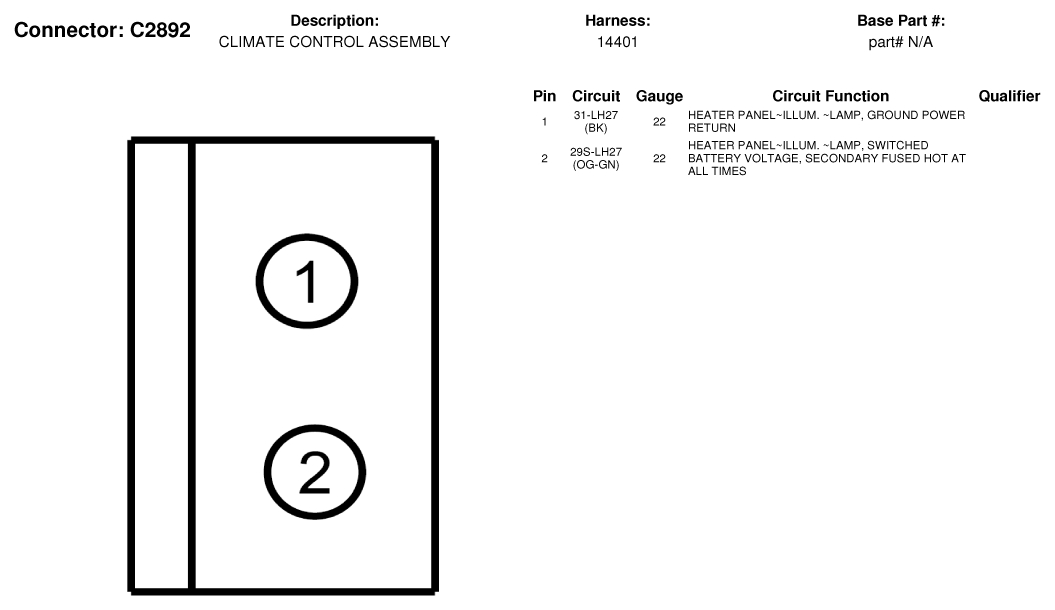

Fig 1: Climate Control Assembly Connector End View (C2892)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
