Fuel Pump Module Connector - C433

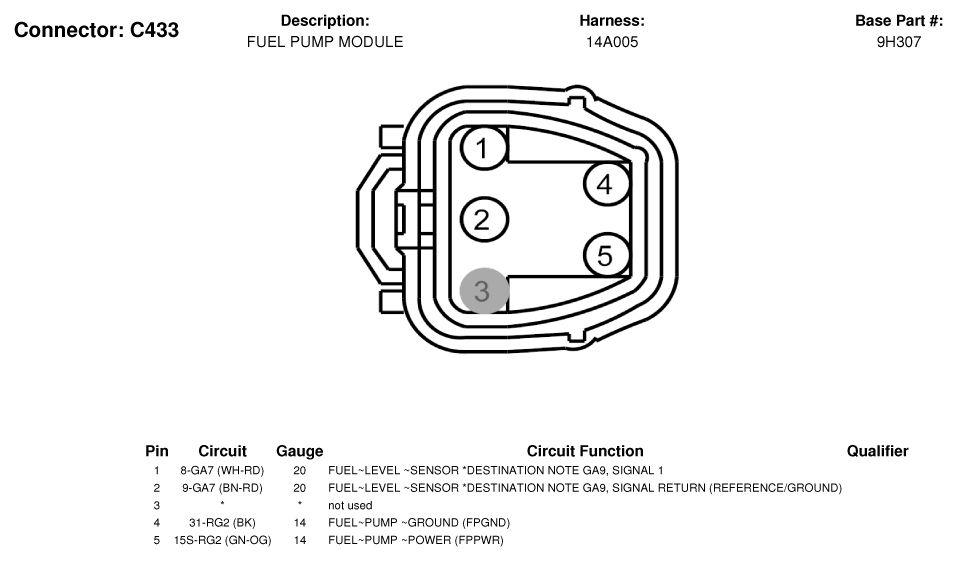

Fig 1: Fuel Pump Module Connector End View (C433)
G07337336Courtesy of FORD MOTOR CO.
